Telehandler · Manitou

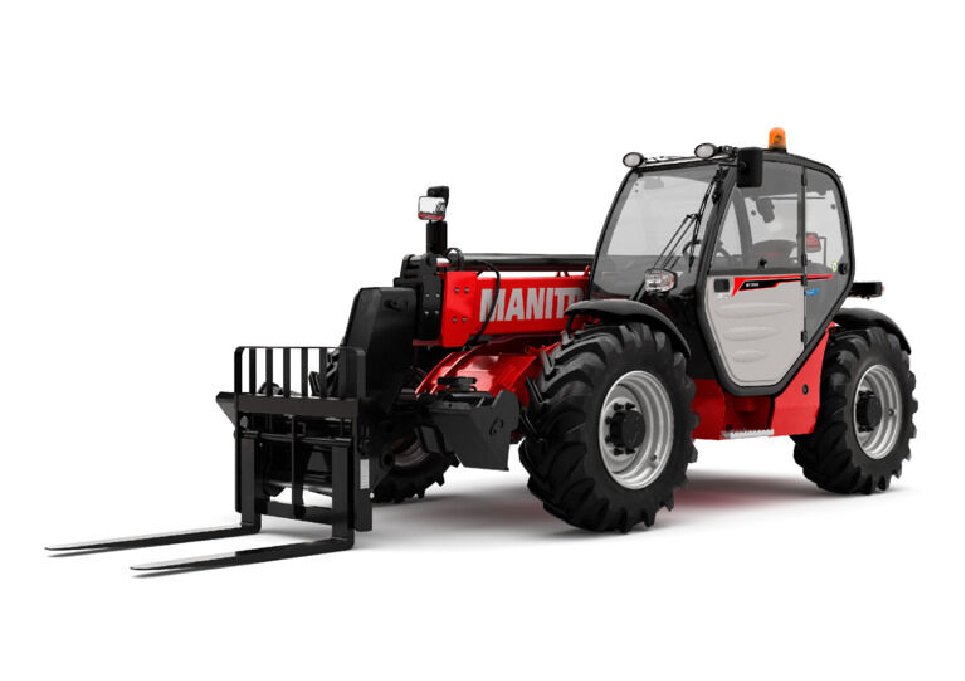

Manitou MT1033 EASY Specs
Quick-reference specifications for the Manitou MT1033 EASY telehandler, from the manufacturer’s spec sheet and published specifications.
Performance 11 specs
| Stage V / Tier 4 final | TD 3.6 L |
|---|---|
| Max Lifting Height | 32.75 ft (9.98 m) |
| Max Horizontal Reach | 23.46 ft (7.15 m) |
| Max Capacity | 7,275 lb (3,300 kg) |
| Lifting Capacity at Full Reach | 2,205 lb (1,000 kg) |
| Max Travel Speed | 15.5 mph (24.9 km/h) |
| Lifting Time | 6.7 s |
| Lowering Time | 5.4 s |
| Breakout Force with Bucket | 5,330 daN |
| Drawbar Pull (Laden) | 8,580 daN |
| External Turning Radius | 12.47 ft (3.80 m) |
Dimensions 10 specs
| Overall Length to Carriage | 16.17 ft (4.93 m) |
|---|---|
| Overall Width | 7.64 ft (2.33 m) |
| Overall Height | 7.55 ft (2.30 m) |
| Wheelbase | 8.83 ft (2.69 m) |
| Ground Clearance | 1.48 ft (0.45 m) |
| Overall Cab Width | 2.92 ft (0.89 m) |
| Tilt-up Angle | 12° |
| Tilt-down Angle | 114° |
| Fork Length / Width / Section | 47.2 in x 4.92 in / 1.77 in (1,200 mm x 125 mm / 45 mm) |
| Standard Tires | Alliance 400/80 – 24 – 162A8 |
Weight 1 spec
| Unladen Weight (with forks) | 17,173 lb (7,790 kg) |
|---|
Power / Engine 7 specs
| Engine Type | TD 3.6 L4 |
|---|---|
| Emission Standard | Stage V / Tier 4 final |
| Engine Power | 75 Hp (55.4 kW) |
| Max Torque | 340 Nm @ 1,600 rpm |
| Displacement | 220.8 cu in (3.621 l) |
| Number of Cylinders | 4 |
| Fuel Tank Capacity | 31.7 US gal (120 l) |
Hydraulics / Fluids 3 specs
| Hydraulic Flow / Pressure | 92.7 l/min / 250 bar |
|---|---|
| Hydraulic Oil Tank Capacity | 33.8 US gal (128 l) |
| Engine Oil Capacity | 2.64 US gal (10 l) |
