Telehandler · Manitou

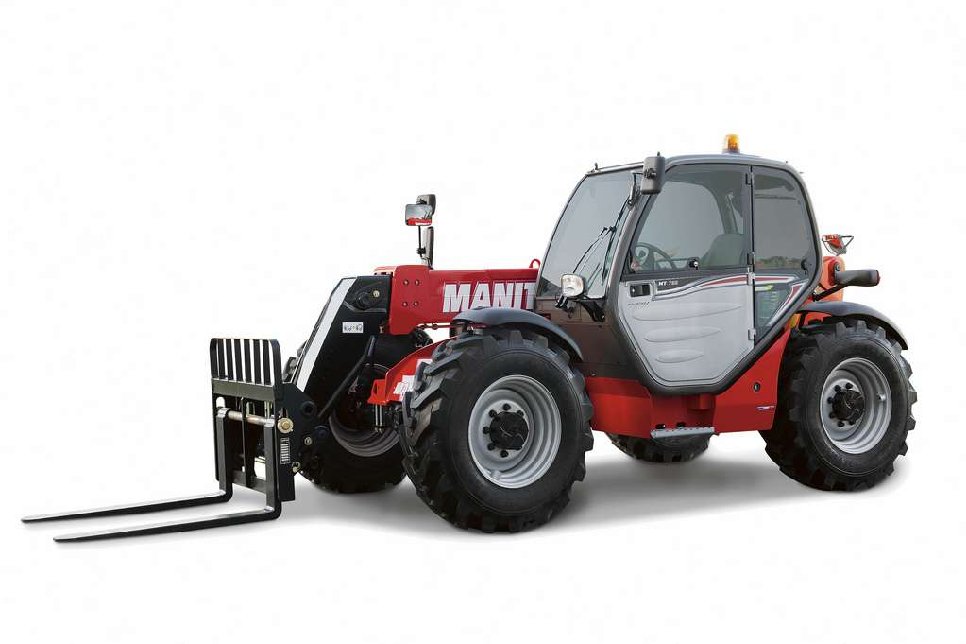

Manitou MT732 EASY Specs
Quick-reference specifications for the Manitou MT732 EASY telehandler, from the manufacturer’s spec sheet and published specifications.
- Lift Capacity at Full Height
- 5,511 lb2.5 t
Performance 12 specs
| Stage 3B | TD 3.6 L |
|---|---|
| Max Lift Height | 22 ft 8 in (6.9 m) |
| Lift Capacity at Full Height | 5,511 lb (2.5 t) |
| Lift Capacity (Nominal at COG) | 7,054 lb (3.2 t) |
| Lift Capacity at Full Forward Reach | 2,756 lb (1.25 t) |
| Max Horizontal Reach | 13.6 ft (4.16 m) |
| Max Travel Speed | 15.5 mph (25 km/h) |
| Lifting Time (Unladen) | 6.8 sec |
| Lowering Time (Unladen) | 5.8 sec |
| Boom Extension Time (Unladen) | 6.8 sec |
| Boom Retraction Time (Unladen) | 4.7 sec |
| Turning Radius (Over Tires) | 12.2 ft (3.72 m) |
Dimensions 9 specs
| Overall Length | 15 ft 7 in (4.74 m) |
|---|---|
| Overall Width | 7 ft 8 in (2.34 m) |
| Overall Height | 7 ft 6 in (2.30 m) |
| Wheelbase | 8.4 ft (2.56 m) |
| Ground Clearance | 1 ft 6 in (0.45 m) |
| Transport Length | 15 ft 7 in (4.76 m) |
| Transport Width | 2.34 m |
| Transport Height | 2.3 m |
| Standard Fork Length x Width x Thickness | 47.2 x 4.9 x 1.8 in (1,200 x 125 x 45 mm) |
Weight 1 spec
| Unladen Weight (with Forks) | 14,947 lb (6,780-7,585 kg) |
|---|
Power / Engine 4 specs
| Engine Type | TD 3.6 L Stage IIIB |
|---|---|
| Fuel Tank Capacity | 31.8 gal (120 l) |
| Forward Gears | 4 |
| Reverse Gears | 4 |
Hydraulics / Fluids 3 specs
| Pump Flow Rate | 27.5 gal/min (104 l/min) |
|---|---|
| System Pressure | 3,771 psi (260 bar) |
| Hydraulic Oil Tank Capacity | 33.8 gal (128 l) |
