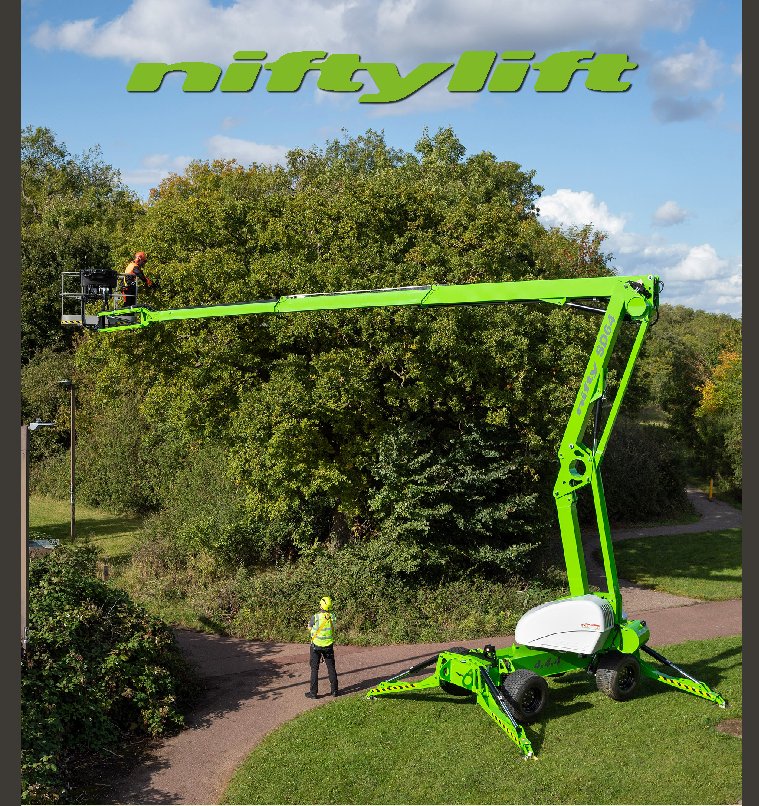

Niftylift SD64 Specs
Quick-reference specifications for the Niftylift SD64 aerial lift, compiled from published specifications.
- Platform Height
- 63 ft 6 in19.35 m
- Working Height
- 70 ft21.34 m
- Gradeability
- 45% / 24°
Performance 10 specs
| Platform Height | 63 ft 6 in (19.35 m) |
|---|---|
| Working Height | 70 ft (21.34 m) |
| Working Outreach | 42 ft (12.8 m) |
| Travel Speed | 5.6 mph (9 km/h) |
| Gradeability | 45% / 24° |
| Maximum Slope | 18% / 10° |
| Turning Radius | 11 ft 6 in (3.51 m) |
| Safe Working Load | 500 lb (227 kg) |
| Jib Boom Arc | 150° |
| Basket Rotation | 100° |
Dimensions 6 specs
| Machine Length | 20 ft 2 in (6.15 m) |
|---|---|
| Machine Width | 6 ft 9 in (2.06 m) |
| Machine Height | 7 ft 5 in (2.26 m) |
| Working Width | 13 ft 9 in (4.19 m) |
| Basket Width | 5 ft 11 in (1.8 m) |
| Basket Depth | 2 ft 9 in (0.84 m) |
Weight 1 spec
| Minimum Weight | 9,170 lb (4,162 kg) |
|---|
