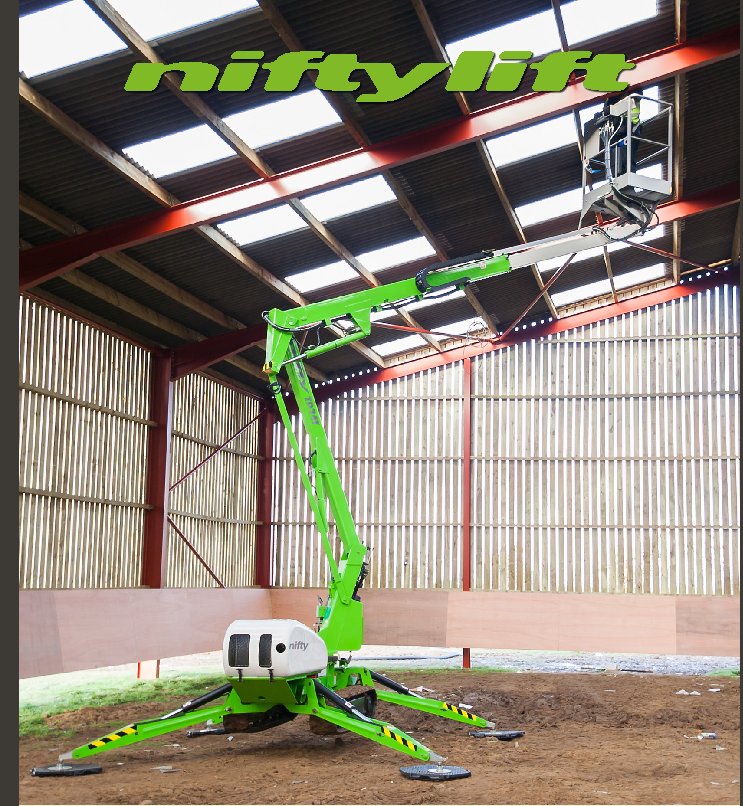

Niftylift TD34TN Specs
Quick-reference specifications for the Niftylift TD34TN aerial lift, compiled from published specifications.
- Platform Height
- 33 ft 6 in10.2 m
- Working Height
- 40 ft12.2 m
- Gradeability
- 60%31°
Performance 9 specs
| Platform Height | 33 ft 6 in (10.2 m) |
|---|---|
| Working Height | 40 ft (12.2 m) |
| Working Outreach | 20 ft (6.1 m) |
| Safe Working Load | 500 lb (227 kg) |
| Travel Speed | 1 mph (1.6 km/h) |
| Gradeability | 60% (31°) |
| Maximum Slope | 13% (7.2°) |
| Turret Rotation | 406° |
| Hydraulic Pressure | 2,900 psi |
Dimensions 8 specs
| Machine Length | 13 ft 1 in (3.96 m) |
|---|---|
| Machine Width | 3 ft 9 in |
| Machine Height (Stowed) | 6 ft 5 in (1.96 m) |
| Retracted Width | 2 ft 7 in (0.79 m) |
| Working Width | 9 ft 10 in |
| Basket Width | 3 ft 7 in (1.09 m) |
| Basket Depth | 2 ft 2 in (0.66 m) |
| Basket Size | 30 in × 25 in |
Weight 2 specs
| Minimum Weight | 3,990 lb (1,809 kg) |
|---|---|
| Gross Vehicle Weight (Maximum) | 3,890 lb |
Power / Engine 1 spec
| Engine Type | Kubota 722E |
|---|
