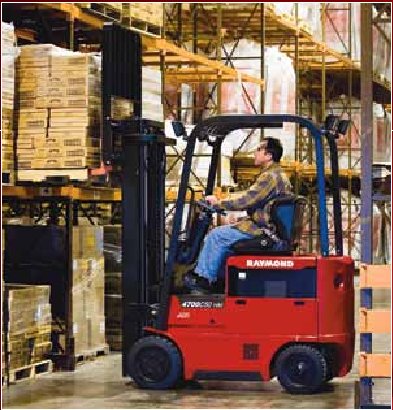

Raymond 4700C60 Specs

Quick-reference specifications for the Raymond 4700C60 forklift, taken from the manufacturer’s spec sheet.

Download Spec Sheet (PDF)View PDF

Maximum Gradeability – Empty 48V: 25 %

Performance 8 specs

Maximum Travel Speed Forward/Reverse – Loaded 48V	9.6 mph
Lift Speed – Loaded 36V / 48V	53 / 65 fpm
Lift Speed – Empty 36V / 48V	85 / 91 fpm
Lowering Speed – Empty	75 fpm
Maximum Gradeability – Empty 48V	25 %
Load Capacity (24″ L.C.)	6000 lb
J – Tilt Range (Forward/Backward)	5 / 6 in
K – Outside Turning Radius	77.4 in

Dimensions 17 specs

Center of Wheelbase	3.54 in
Tires – Type (Front/Rear)	Cushion/Cushion
Tires – Size (ODxWxID) Drive	21 x 9 x 15
Tires – Size (ODxWxID) Steer	18 x 6 x 12.12
Brakes	Hydraulic
A – Maximum Fork El. Ht.	186 in
B – Mast Lowered Height	83 in
C – Mast Extended Height	234 in
F – Wheelbase	54.5 in
G-ForkSize(LxWxT)	42 x 4.9 x 1.8 in
H – Length to Fork Face	88 in
I – Overhead Guard Height	90 in
L – Basic Right angle Stacking Aisle Width	143 in
M – Overall Width	44.9 in
N – Carriage Width	43.5 in
O – Tread/Track Width Front	35.9 in
O – Tread/Track Width Rear	34.0 in

Weight 5 specs

Truck Weights	11775 lb
Weight Distribution w/ Std Battery – Front-loaded	15923 lb
Weight Distribution w/ Std Battery – Rear-loaded	1852 lb
Weight Distribution w/ Std Battery – Front-empty	5216 lb
Weight Distribution w/ Std Battery – Rear-empty	6559 lb

Power / Engine 8 specs

Gross Weight Without Battery	6330 lb
Battery Compartment Dimensions – Width	33.75 in
Battery Compartment Dimensions – Length	39.4 in
Battery Compartment Dimensions – Height	22.81 in
Battery – Voltage/Capacity (6-hour Rating) High	1400 / 1100 AH
Battery – Min. Weight 36V / 48V	3100 lb
Battery – Max. Weight 36V / 48V	3700 lb
Electric Motors – Drive	16.6 kW

Hydraulics / Fluids 1 spec

Attachment Operating Hydraulic Pressure	1886 psi
