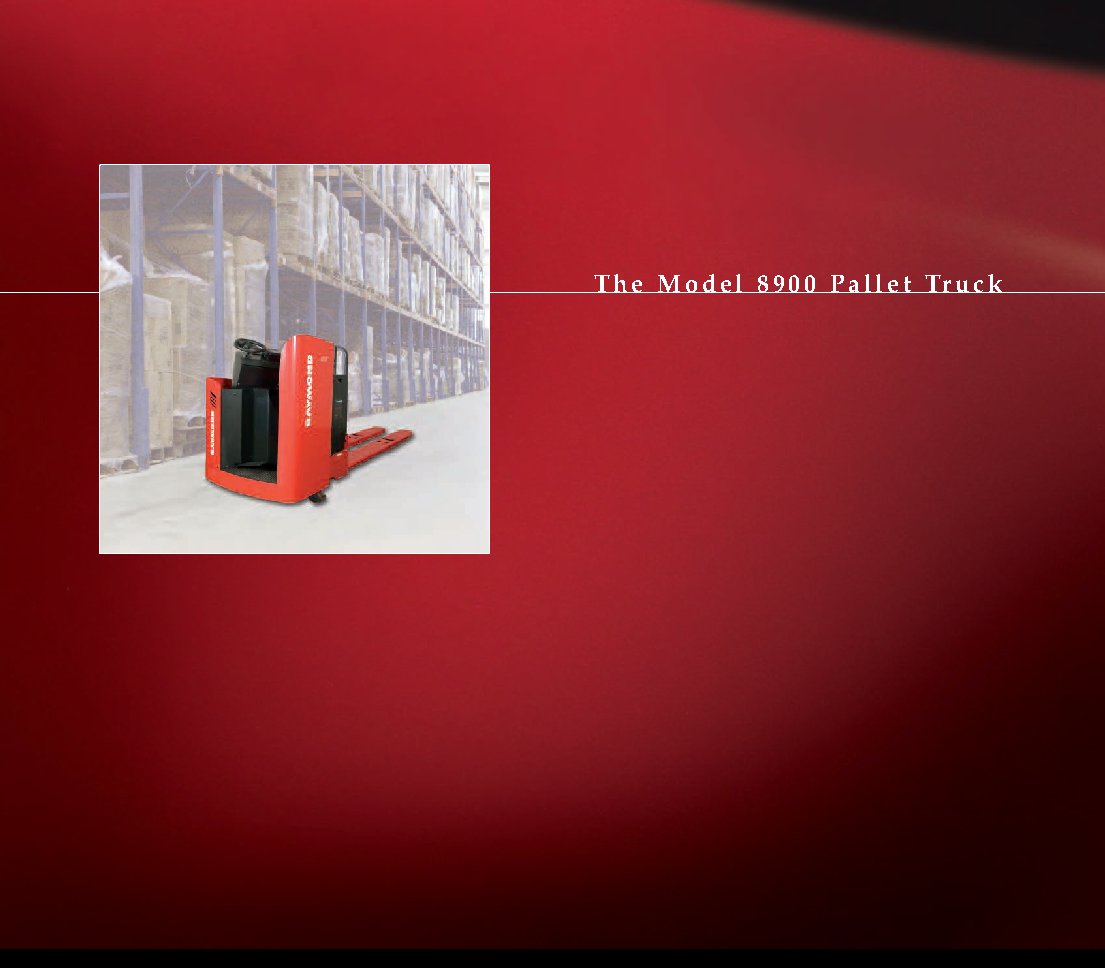

- Raymond 8900
Forklift · Raymond
Raymond 8900 Specs
Quick-reference specifications for the Raymond 8900 forklift, taken from the manufacturer’s spec sheet.
Performance 4 specs
| DIMENSIONS AND SPECIFICATIONS – Capacity | 6,000 or 8,000 |
|---|---|
| Turning radius with 48″ forks | 82 in lowered |
| Travel speed loaded for 6,000 lbs. | 6.5 mph |
| Travel speed unloaded | 9.0 mph |
Dimensions 5 specs
| Head length (A) | 45.3 in |
|---|---|
| Truck width (B) | 40 in |
| Truck lifts | 6 in |
| Fork width (C) | 9 in (8K 10 in) |
| Drive tire, Rubber, Diameter | 12 in |
Power / Engine 2 specs
| Max usable battery compartment | 31 in x 13 in |
|---|---|
| Max battery amperes | 750 |
