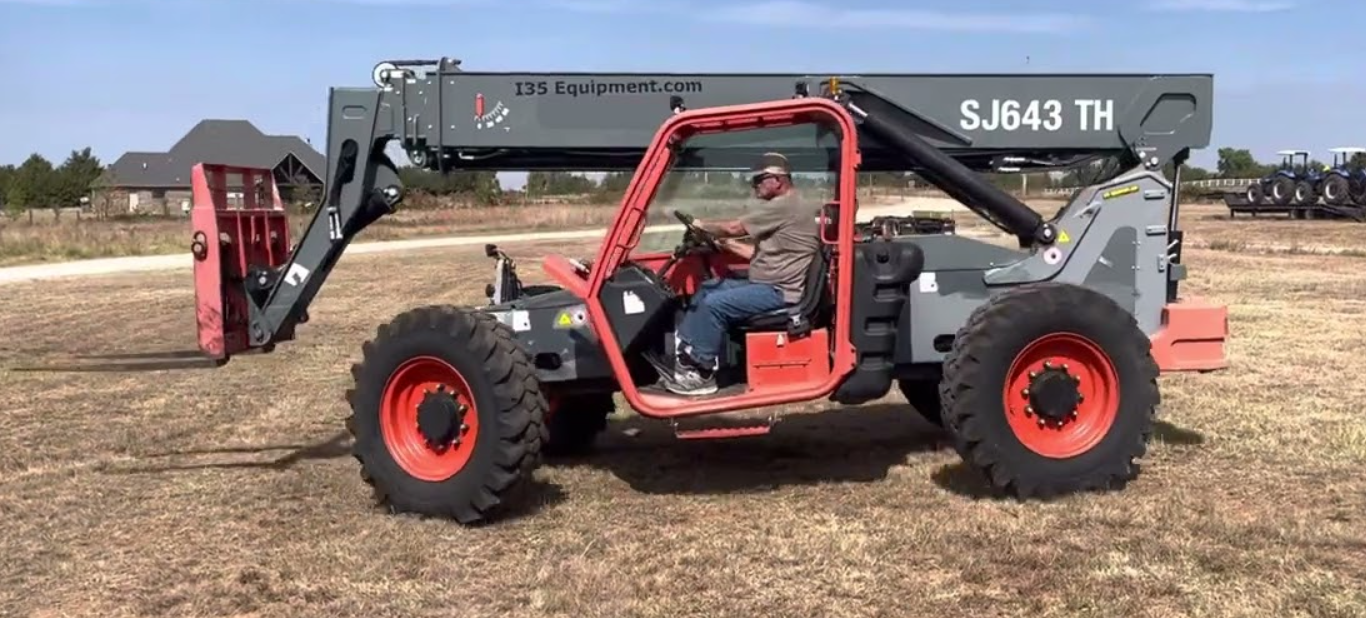

Skyjack SJ643TH Spec Sheet
Quick-reference specifications for the Skyjack SJ643TH. Includes extracted performance, dimensions, capacities, and other details found in the source PDF.
Maximum Lift Height: 43’ 4” (13.21m)
Maximum Forward Reach: 28’ 7” (8.71m)
Overall Width: 8’ 5” (2.56 m)
Operating Weight: 19,640 lbs (8,908 kg)
BHESPECS note: Specs can vary by configuration, serial range, and market. Always confirm against the machine data plate and the source PDF.
Performance
| Maximum Lift Capacity | 6,000 lbs (2,722 kg) |
|---|---|
| Maximum Lift Height | 43’ 4” (13.21m) |
| Maximum Forward Reach | 28’ 7” (8.71m) |
| Turning Radius – Outside | 147” (3.73 m) |
| Max Travel Speed – Forward | 17mph (27 km/h) |
| Drawbar Pull | 17,750 lbs |
Dimensions
| O/A Length – Less Forks | 19’ 6” (5.94 m) |
|---|---|
| Overall Height – Stowed | 7’ 11” (2.41 m) |
| Overall Width | 8’ 5” (2.56 m) |
| Ground Clearance | 19” (48.3 cm) |
Weights & Electrical
| Operating Weight | 19,640 lbs (8,908 kg) |
|---|---|
| Skyjack Head Office 55 Campbell Rd. Guelph, ON Canada N1H | 1B9 |
| skyjack@skyjack.com |
Powertrain & Systems
| Engine 74 hp / | 221 lb-ft Deutz TCD2.9L T4F |
|---|---|
| Transmission Dana Powershift, | 3 speeds F/R |
| Dana Steering 3 mode (Front Wheel, | 4 Wheel, Crab) |
| Tires Pneumatic 13 x 24 | 16PR Grip Lug |
Hydraulics & Capacities
| Fuel Tank Capacity | 35.7 gallon (142 L) |
|---|---|
| Hydraulic Reservoir | 43.85 gallon (166 L) |
