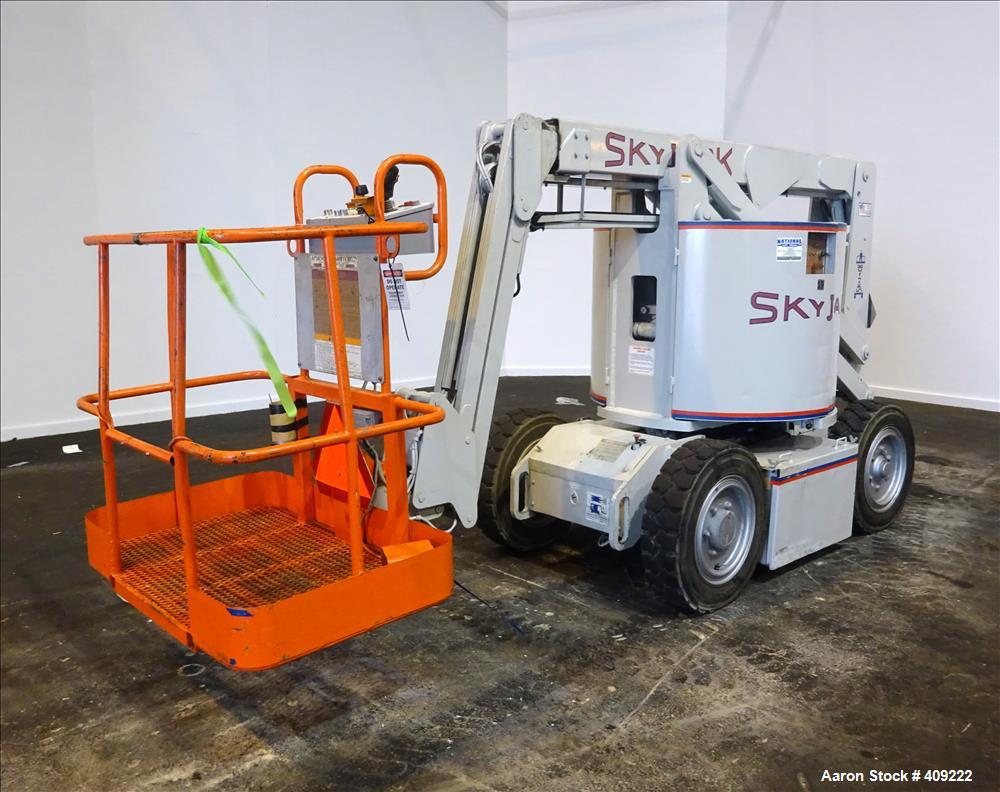

Skyjack SJKB-33N Specs

Quick-reference specifications for the Skyjack SJKB-33N boom lift, compiled from published specifications.

Lift Capacity: 500 lb227 kg
Work Height: 39 ft11.89 m

Performance 11 specs

Work Height	39 ft (11.89 m)
Raised Platform Height	33 ft (10.06 m)
Lift Capacity	500 lb (227 kg)
Horizontal Reach	6.5 m
Maximum Lift Pressure	2600 psi
Travel Speed (stowed)	3.4 mph (5.5 kph)
Travel Speed (elevated)	0.8 mph (1.3 kph)
Inside Turning Radius	7 ft (2.13 m)
Outside Turning Radius	14 ft 6 in (4.42 m)
Platform Rotation	90 degrees each direction
Ambient Noise Level	56 db

Dimensions 6 specs

Stowed Height	6 ft 7 in (2.0 m)
Overall Width	48 in (1.22 m)
Stowed Length	14 ft 4 in (4.36 m)
Underclearance	7.5 in (0.19 m)
Platform Size	48 in x 30 in
Pivotal Height	15 ft (4.6 m)

Weight 2 specs

Machine Weight	14,500 lb (6,577 kg)
Floor Loading	64.7 psi (4.55 kg/cm²)

Power / Engine 2 specs

Batteries	8 x 6 Volt, 350 AH
Battery Charger	48 volt, 25 amp on-board

Hydraulics / Fluids 3 specs

System Relief Pressure	2600 psi
Boom Function Pump	0.194 ci./rev
Brake Pump	0.065 ci./rev
