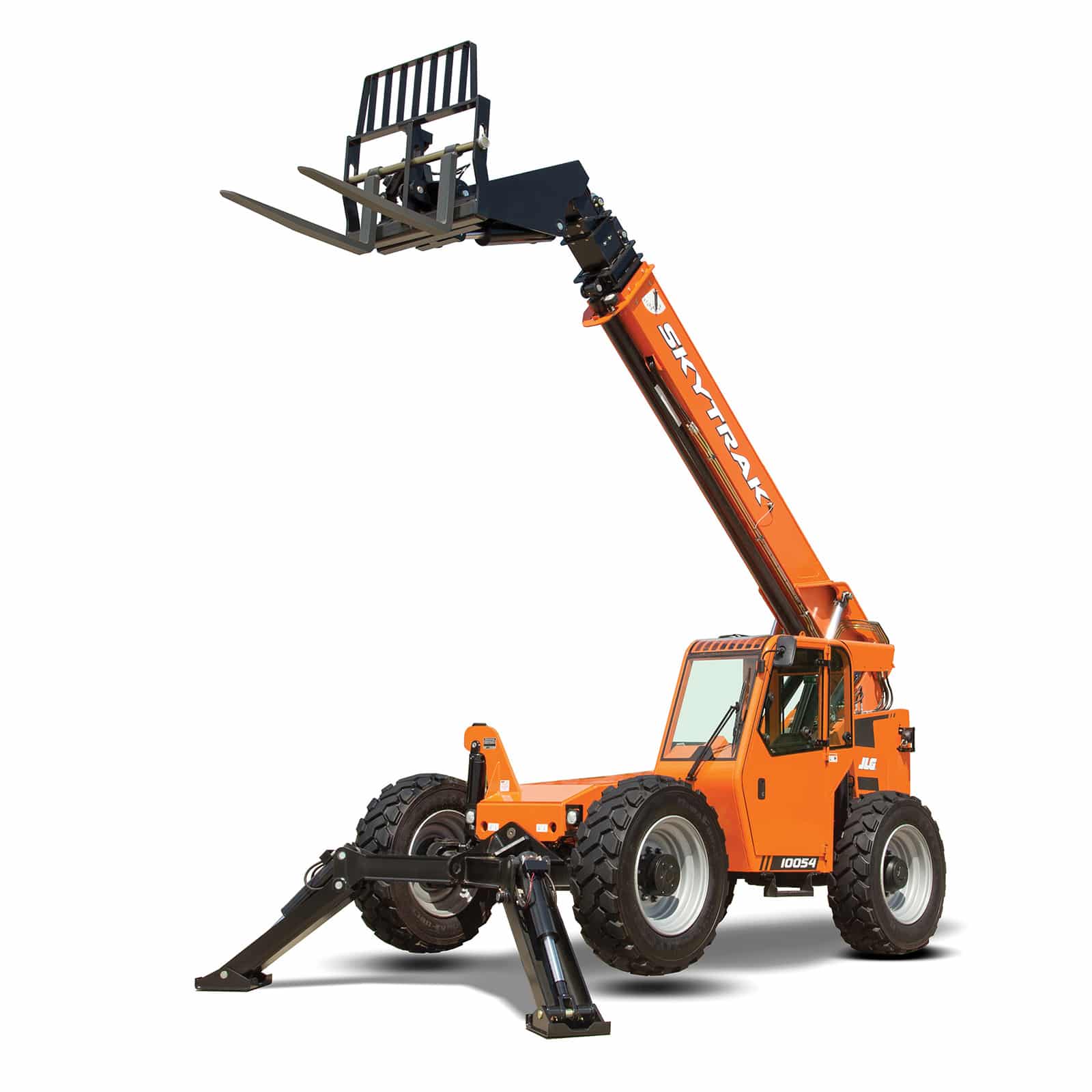

Skytrak 10054 Legacy Specs

Quick-reference specifications for the Skytrak 10054 Legacy telehandler, compiled from published specifications.

Rated Capacity: 10,000 lb4,536 kg
Maximum Lift Height: 53 ft 2 in16.21 m
Operating Weight: 27,200 lb12,336 kg

Performance 6 specs

Rated Capacity	10,000 lb (4,536 kg)
Maximum Lift Height	53 ft 2 in (16.21 m)
Maximum Reach	38 ft 9 in (11.81 m)
Load at Max Height	4,000 lb (1,814 kg)
Top Speed	20 mph (32 km/h)
Frame Leveling	10 degrees each side

Dimensions 4 specs

Overall Length (without forks)	6.4 m
Overall Width	8 ft 6 in (2.59 m)
Overall Height (stowed)	8 ft 5 in (2.54 m)
Ground Clearance	18 in (457 mm)

Weight 2 specs

Operating Weight	27,200 lb (12,336 kg)
Operating Weight (metric source)	12,791 kg

Power / Engine 4 specs

Standard Engine	Cummins QSF 3.8 L Turbo Diesel
Standard Horsepower	110 hp
Optional Horsepower	74 hp
Fuel Tank Capacity	35 gal (132 L)
