Telehandler · Skytrak

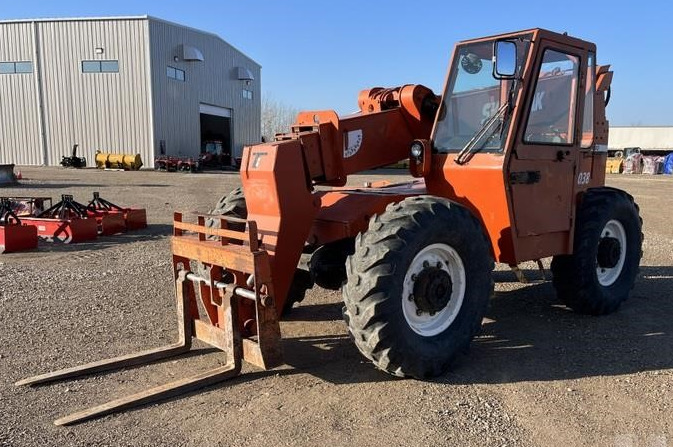

Skytrak 9038 Specs
Quick-reference specifications for the Skytrak 9038 telehandler, compiled from published specifications.
- Max Lift Capacity
- 9,000 lb4,082 kg
Performance 7 specs
| Max Lift Capacity | 9,000 lb (4,082 kg) |
|---|---|
| Lift Height | 37 ft 6 in (11.43 m) |
| Max Reach from Front Tires to 24 in Load Center | 23 ft 6 in (7.16 m) |
| Reach @ 24 in Load Center | 72 in (1.83 m) |
| Max Reach Below Grade | 4 ft (1.22 m) |
| Turning Clearance Radius | 14 ft 3 in (4.34 m) |
| Frame Tilt | 12° |
Dimensions 5 specs
| Length Less Forks | 216 in (5.49 m) |
|---|---|
| Width | 96 in (2.44 m) |
| Height | 102 in (2.59 m) |
| Wheelbase | 108 in (2.74 m) |
| Ground Clearance | 16 in (406 mm) |
Power / Engine 3 specs
| Engine Type | Turbocharged diesel, 4 cylinder |
|---|---|
| Horsepower | 107 hp |
| Transmission | 3-speed powershift |
