Aerial Lift · Snorkel

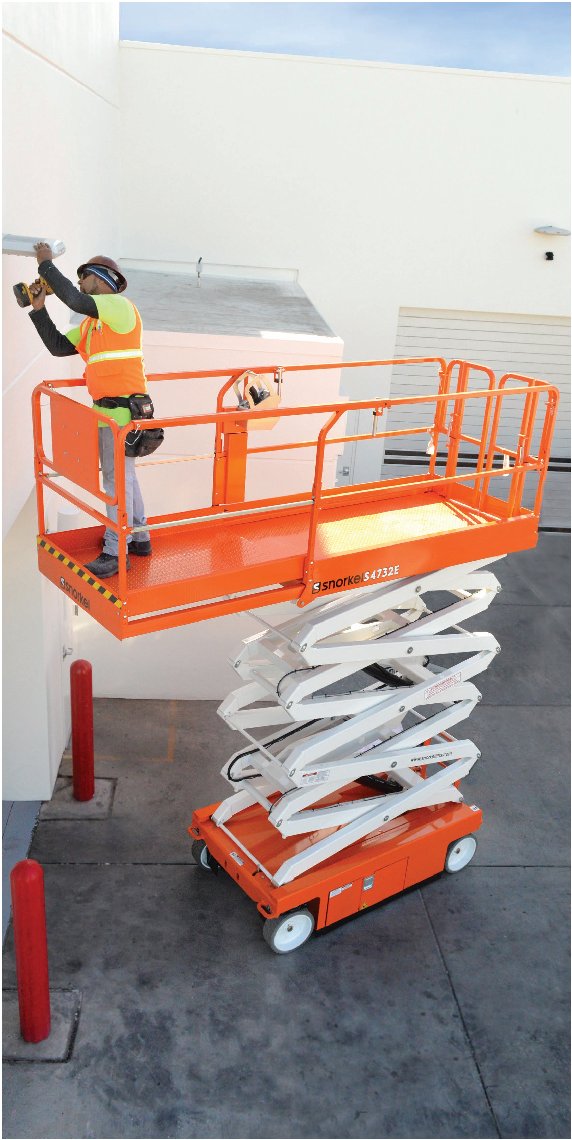

Snorkel S4732E Specs
Quick-reference specifications for the Snorkel S4732E aerial lift, taken from the manufacturer’s spec sheet.
- Platform capacity
- 700 lb
- Max. working height
- 38 ft
- Gradeability
- 25%
Performance 10 specs
| Max. working height | 38 ft |
|---|---|
| Platform capacity | 700 lb |
| Max. wind speed | 28 mph |
| Max. drive speed (stowed) | 2.0 mph |
| Raise/lower time | 50/58 sec |
| Gradeability | 25% |
| Inside turning radius | 10 in |
| Outside turning radius | 95 in |
| Tires | 15 in x 5 in non-marking rubber |
| Drive system | 2-wheel drive |
Dimensions 5 specs
| Max. platform height (A) | 32 ft |
|---|---|
| Deck extension length (B) | 48 in |
| Overall length (D) (step removed) | 89 in |
| Overall width (C) | 47 in |
| Max. drive height | 32 ft |
Power / Engine 2 specs
| Power source | 24 V DC battery electric |
|---|---|
| Charger | 90-240 V, 25amp |
