Aerial Lift · Snorkel

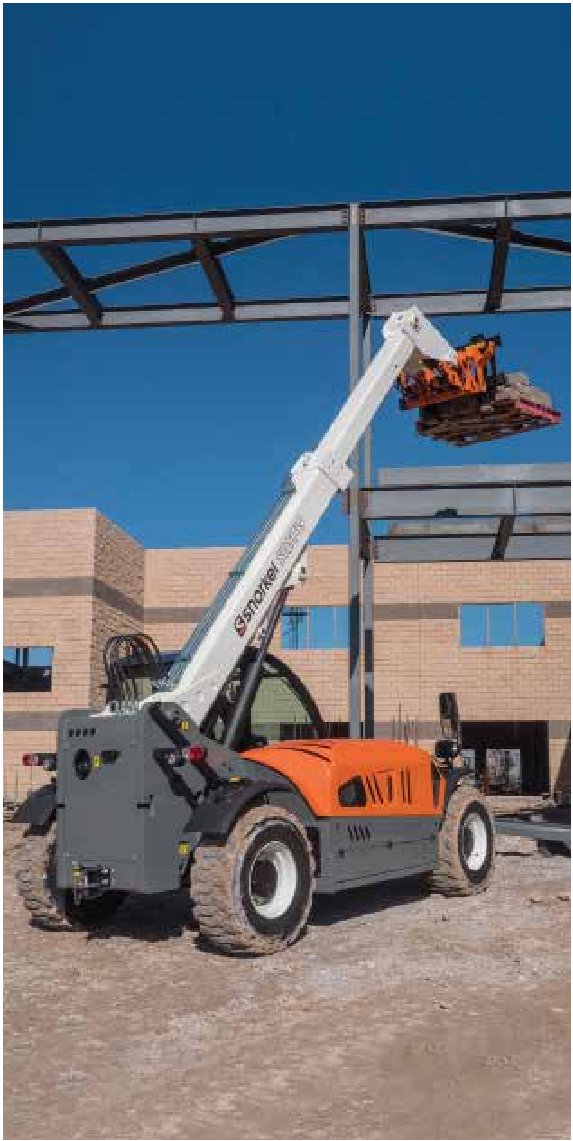

Snorkel SR5719 Specs
Quick-reference specifications for the Snorkel SR5719 aerial lift, taken from the manufacturer’s spec sheet.
- Max. lift capacity
- 5,732 lb
- Weight
- 10,360 lb
Performance 6 specs
| Max. lift capacity | 5,732 lb |
|---|---|
| Max. forward reach | 10 ft 4 in |
| Max. drive speed | 16.7 mph |
| Raise/lower time | 6.9/5 sec |
| Outside turning radius | 10 ft 8 in |
| Tires | 12 x 16.5 |
Dimensions 6 specs
| Max. lift height | 19 ft |
|---|---|
| Overall width | 6 ft 2 in |
| Stowed height | 6 ft 4 in |
| Length to fork face | 13 ft 9 in |
| Wheelbase | 8 ft 3 in |
| Ground clearance | 9 in |
Weight 1 spec
| Weight | 10,360 lb |
|---|
Power / Engine 2 specs
| Fuel capacity | 21 gal |
|---|---|
| Power source | Yanmar 70.3 hp – Tier 4 Final diesel |
Hydraulics / Fluids 3 specs
| Hydraulic flow (per minute) | 18.5 gal |
|---|---|
| Hydraulic pressure | 3,336 psi |
| Hydraulic oil capacity | 18.5 gal |
