Telehandler · Terex

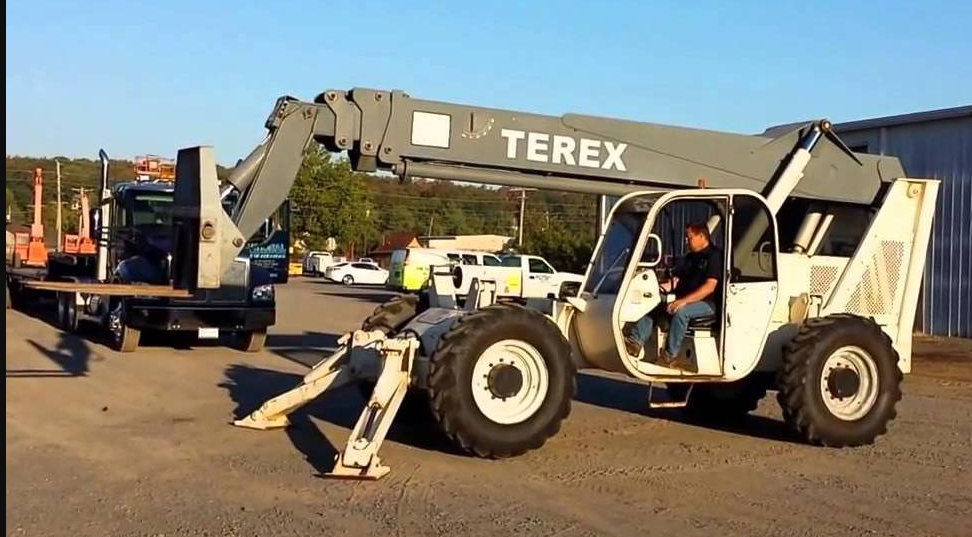

Terex SS-1056C (Square Shooter) Specs
Quick-reference specifications for the Terex SS-1056C (Square Shooter) telehandler, compiled from published specifications.
- Maximum lift capacity
- 10,000 lb4,536 kg
- Maximum forward reach
- 40 ft12.1 m
- Operating weight with forks
- 31,200 lb14,149 kg
Performance 8 specs
| Maximum lift capacity | 10,000 lb (4,536 kg) |
|---|---|
| Maximum lifting height | 56 ft (17.1 m) |
| Maximum forward reach | 40 ft (12.1 m) |
| Reach at maximum height | 7 ft (2.13 m) |
| Payload at maximum height | 4,000 lb (1,814 kg) |
| Payload at maximum reach | 2,000 lb (907 kg) |
| Turning radius (outside tire) | 15 ft 2 in (4.62 m) |
| Inside turn radius | 6 ft 8 in (2.03 m) |
Dimensions 5 specs
| Length | 27 ft (8.23 m) |
|---|---|
| Width | 8 ft 6 in (2.59 m) |
| Height | 9 ft 7 in (2.92 m) |
| Wheelbase | 11 ft 3 in (3.43 m) |
| Ground clearance | 1 ft 7 in (0.48 m) |
Weight 1 spec
| Operating weight with forks | 31,200 lb (14,149 kg) |
|---|
Power / Engine 4 specs
| NET ENGINE | 125 hp (93.3 kW) |
|---|---|
| Engine model | John Deere 4045T |
| Engine type | 4 cylinders turbocharged diesel |
| Power @ 2,400 rpm | 125 hp (93.3 kW) |
Hydraulics / Fluids 3 specs
| Hydraulic oil capacity | 48 gal (181.7 L) |
|---|---|
| Fuel capacity | 30 gal (113.6 L) |
| Pump filtration | 10 Micron |
