Telehandler · XCMG

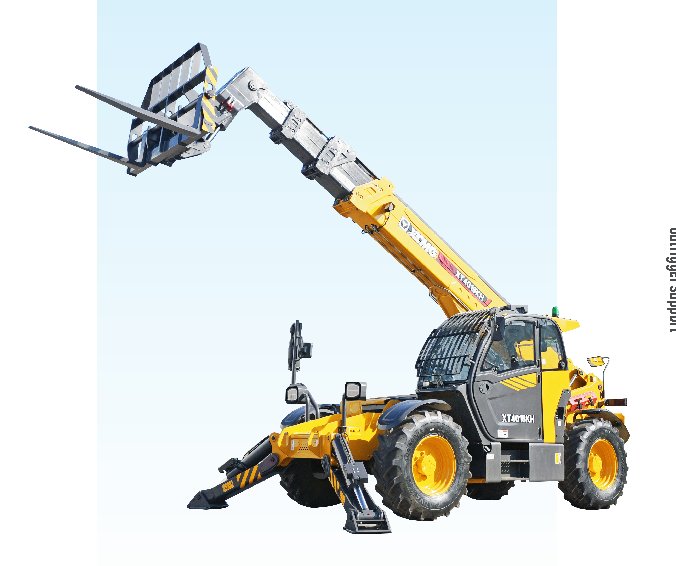

XCMG XT4018KH Specs
Quick-reference specifications for the XCMG XT4018KH telehandler, compiled from published specifications.
- Lift Capacity at Max. Height
- 5,512 lb2,500 kg
Performance 7 specs
| Max. Lifting Capacity | 8,818 lb (4,000 kg) |
|---|---|
| Max. Lifting Height | 57 ft 6.9 in (17.55 m) |
| Lift Capacity at Max. Height | 5,512 lb (2,500 kg) |
| Max. Forward Reach | 42.98 ft (13.1 m) |
| Lift Capacity at Max. Reach | 1,874 lb (850 kg) |
| Max. Traveling Speed | 20.5 mph (33 km/h) |
| Min. Turning Radius | 12.86 ft (3.92 m) |
Dimensions 7 specs
| Total Length (without forks) | 20 ft 7 in (6,270 mm) |
|---|---|
| Total Width (stabilizers retracted) | 7 ft 7.6 in (2,320 mm) |
| Total Height | 8 ft 1.6 in (2,480 mm) |
| Wheelbase | 10 ft (3,050 mm) |
| Track Width | 6 ft 3.4 in (1,920 mm) |
| Min. Ground Clearance | 1 ft 2.4 in (370 mm) |
| Fork Dimensions | 1,200 × 122 × 50 mm |
Weight 1 spec
| Total Weight (with forks) | 26,455 lb (12,000 kg) |
|---|
Power / Engine 1 spec
| Rated Power | 99 hp (74 kW @ 2,200 rpm) |
|---|
Hydraulics / Fluids 1 spec
| Hydraulic Fluid Tank Capacity | 37 gal (140 L) |
|---|
