Telehandler · Xtreme

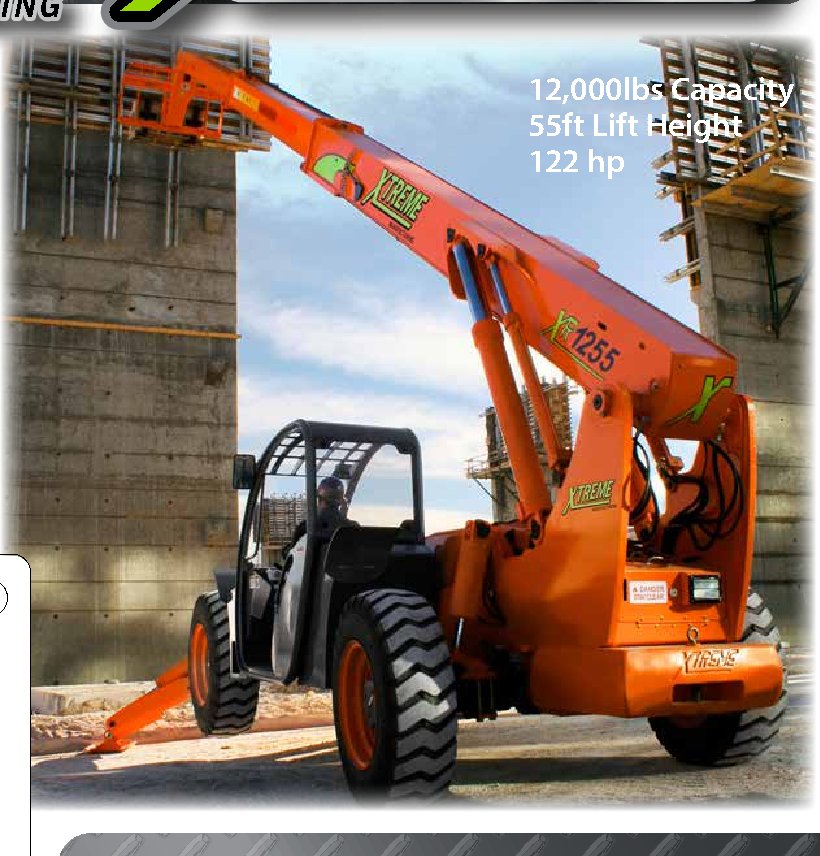

Xtreme XR1255 Specs

Quick-reference specifications for the Xtreme XR1255 telehandler, taken from the manufacturer’s spec sheet.

Download Spec Sheet (PDF)View PDF

Capacity: 12,000 lb
Weight: 35,700 lb

Performance 3 specs

Capacity	12,000 lb
Forward Reach	38 ft
Turning Radius	14 ft

Dimensions 5 specs

Max Lift Height	55 ft
Length to fork face	25 ft
Width	102 in
Height	8 ft 1 in
Ground Clearance	16.5 in

Weight 1 spec

Weight	35,700 lb

Power / Engine 3 specs

Engine	Perkins 122 hp
Fuel Capacity	72 gal
Tires	Foam Filled 15.5 x 25 E3

Hydraulics / Fluids 1 spec

Hydraulic Oil Cap	58 gal
