Telehandler · Xtreme

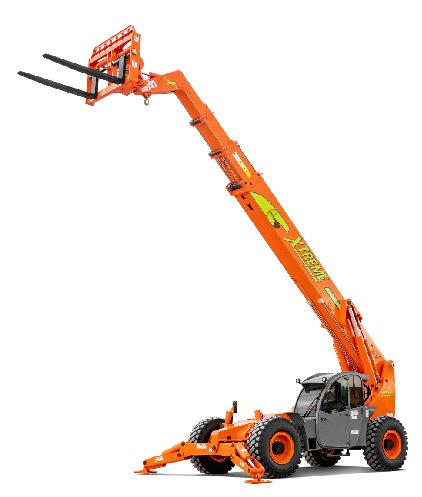

Xtreme XR1570 Specs
Quick-reference specifications for the Xtreme XR1570 telehandler, taken from the manufacturer’s spec sheet.
- Lift capacity
- 15,000 lb6,350 kg
- Weight
- 48,480 lb21,997 kg
Performance 4 specs
| Lift capacity | 15,000 lb (6,350 kg) |
|---|---|
| Forward reach | 53 ft 10 in (16.40 m) |
| Frame leveling L/R | 8° |
| Turning radius | 15 ft 10 in (4.82 m) |
Dimensions 6 specs
| Max lift height | 70 ft (21.33 m) |
|---|---|
| Length to fork face | 26 ft 6 in (8.07 m) |
| Width | 102 in (2.59 m) |
| Height | 8 ft 11 in (2.71 m) |
| Wheelbase | 147 in (3.73 m) |
| Ground clearance | 15 in (381 mm) |
Weight 1 spec
| Weight | 48,480 lb (21,997 kg) |
|---|
Power / Engine 4 specs
| Axles | Dana 213 |
|---|---|
| Transmission | Dana T20000 |
| Fuel capacity | 72 gal (272.5 L) |
| Tires | foam filled 17.5 x 25 |
Hydraulics / Fluids 3 specs
| Hydraulic flow (per min) | 49 gal (185.4 L) |
|---|---|
| Hydraulic pressure | 4,000 psi (275.7 bar) |
| Hydraulic oil capacity | 58 gal (219.5 L) |
