Telehandler · Xtreme

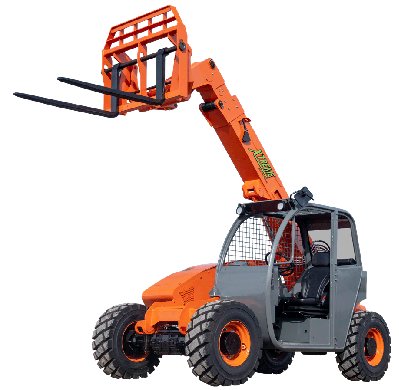

Xtreme XR619 Specs
Quick-reference specifications for the Xtreme XR619 telehandler, taken from the manufacturer’s spec sheet.
- Lift capacity
- 6,000 lb2,721 kg
- Weight
- 10,300 lb4,672 kg
Performance 4 specs
| Lift capacity | 6,000 lb (2,721 kg) |
|---|---|
| Forward reach | 11 ft (3.35 m) |
| Tires | pneumatic 12.00 x 16.5 |
| Turning radius | 11 ft (3.35 m) |
Dimensions 6 specs
| Max lift height | 19 ft (5.79 m) |
|---|---|
| Length to fork face | 12 ft 8 in (3.88 m) |
| Width | 71 in (1.8 m) |
| Height | 6 ft 5 in (1.9 m) |
| Wheelbase | 93 in (2.36 m) |
| Ground clearance | 10.8 in (274.3 mm) |
Weight 1 spec
| Weight | 10,300 lb (4,672 kg) |
|---|
Power / Engine 3 specs
| Axles | Comer 128 |
|---|---|
| Transmission | Linde |
| Fuel capacity | 17 gal (64.3 L) |
Hydraulics / Fluids 3 specs
| Hydraulic flow (per min) | 26 gal (98.4 L) |
|---|---|
| Hydraulic pressure | 3,200 psi (220.6 bar) |
| Hydraulic oil capacity | 24 gal (90.8 L) |
