Telehandler · Xtreme

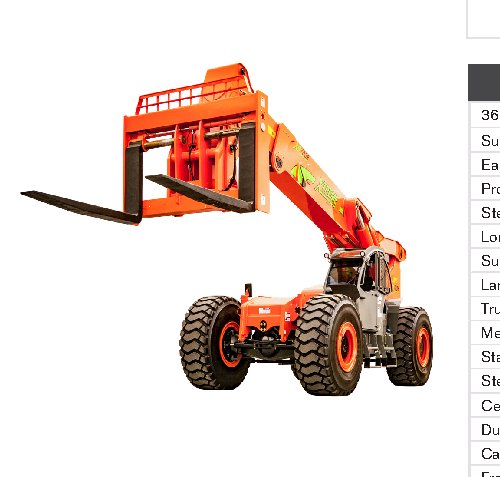

Xtreme XR7038-F Specs
Quick-reference specifications for the Xtreme XR7038-F telehandler, taken from the manufacturer’s spec sheet.
- Lift capacity
- 70,000 lb31,751 kg
- Weight
- 115,000 lb52,163 kg
Performance 5 specs
| Lift capacity | 70,000 lb (31,751 kg) |
|---|---|
| Forward reach | 22 ft (6.70 m) |
| Frame leveling L/R | 7° |
| Tires | foam filled 29.5 R25 |
| Turning radius | 24 ft 6 in (7.46 m) |
Dimensions 6 specs
| Max lift height | 38 ft 2 in (11.63 m) |
|---|---|
| Length to fork face | 27 ft 9 in (8.45 m) |
| Width | 135 in (3.42 m) |
| Height | 11 ft 7 in (3.53 m) |
| Wheelbase | 188 in (4.77 m) |
| Ground clearance | 20.5 in (520.7 mm) |
Weight 1 spec
| Weight | 115,000 lb (52,163 kg) |
|---|
Power / Engine 3 specs
| Axles | Kessler 101.2228.3 |
|---|---|
| Transmission | Dana T36000 |
| Fuel capacity | 150 gal (567.8 L) |
Hydraulics / Fluids 3 specs
| Hydraulic flow (per min) | 92 gal (348.2 L) |
|---|---|
| Hydraulic pressure | 4,200 psi (289.5 bar) |
| Hydraulic oil capacity | 140 gal (529.9 L) |
