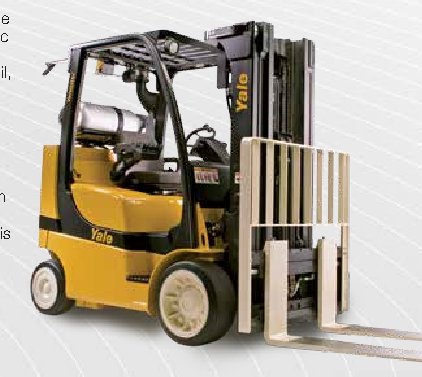

Yale GC120VXPRS Specs
Quick-reference specifications for the Yale GC120VXPRS forklift, taken from the manufacturer’s spec sheet.
- Rated Capacity
- 12000 lb5443 kg
- Max Gradeability RL/NL 1-Speed
- 27/23 %
Performance 16 specs
| Rated Capacity | 12000 lb (5443 kg) |
|---|---|
| Mast Tilt Angles, Forward/Backward | 5F/6B degrees |
| Turning Radius, Minimum Outside (OTR) | 93.5 in (2375 mm) |
| Travel Speed RL/NL 1-Speed | 10.4/10.5 mph (16.8/16.9 km/h) |
| Travel Speed RL/NL 2-Speed | 13.4/13.7 mph (21.5/22 km/h) |
| Lift Speed, Standard 2-Stage LFL RL/NL | 110/112 ft/min (.56/.57 m/s) |
| Lift Speed, Optional 2-Stage FFL RL/NL | 102/106 ft/min (.52/.54 m/s) |
| Lift Speed, Optional 3-Stage FFL RL/NL | 106/108 ft/min (.54/.55 m/s) |
| Lowering Speed, Standard 2-Stage LFL RL/NL | 100/83 ft/min (.51/.42 m/s) |
| Lowering Speed, Optional 2-Stage FFL RL/NL | 89/63 ft/min (.45/.32 m/s) |
| Lowering Speed, Optional 3-Stage FFL RL/NL | 93/77 ft/min (.47/.39 m/s) |
| Max Gradeability RL/NL 1-Speed | 27/23 % |
| Max Gradeability RL/NL 2-Speed | 33/23 % |
| Gradeability @ 1 mph RL/NL 1-Speed | 23/23 % |
| Gradeability @ 1 mph RL/NL 2-Speed | 26/23 % |
| Service Brake – Method of Control/Operation | Foot/Hydraulic |
Dimensions 15 specs
| Load Center, Distance | 24 in (610 mm) |
|---|---|
| Step Height | 15.6 in (396 mm) |
| Tire Type – Cushion, Solid, Pneumatic | Cushion |
| Fork Spread, Outside Dimensions | 38.3 in (972 mm) |
| Overall Width, Standard Tread | 52.0 in (1320 mm) |
| Overall Width, Wide Tread | 55.9 in (1420 mm) |
| Height, Standard Mast – Lowered | 85 in (2138 mm) |
| Height, Standard Mast – Extended with LBR | 159 in (4031 mm) |
| Height, Standard Mast – Extended without LBR | 144 in (3657 mm) |
| Height, Standard Overhead Guard | 86 in (2175 mm) |
| Height, Optional Overhead Guard | 83 in (2108 mm) |
| Tire Size, Front | 22 X 12 X16 |
| Tire Size, Rear | 18 X 8 X 12.2 |
| Wheelbase | 70.5 in (1790 mm) |
| Ground Clearance, Center of Wheelbase NL | 6.1 in (156 mm) |
Weight 4 specs
| Weight, Standard Truck (Standard 2-Stg. LFL) NL | 18155 lb (8235 kg) |
|---|---|
| Weight, Standard Truck (Standard 2-Stg. LFL) RL | 30155 lb (13678 kg) |
| Axle Loading, Static Front/Rear NL | 6773 / 11382 lb (3072 / 5163 kg) |
| Axle Loading, Static Front/Rear RL | 25957 / 4198 lb (11774 / 1904 kg) |
Power / Engine 5 specs
| Engine | Kubota 3.8 L LPG |
|---|---|
| Power Type | LPG |
| Battery Type | Maintenance Free |
| Volts/Cold Cranking Amps | 12/475 v/cca |
| Engine, Manufacturer/Model | Kubota WG3800 LPG |
