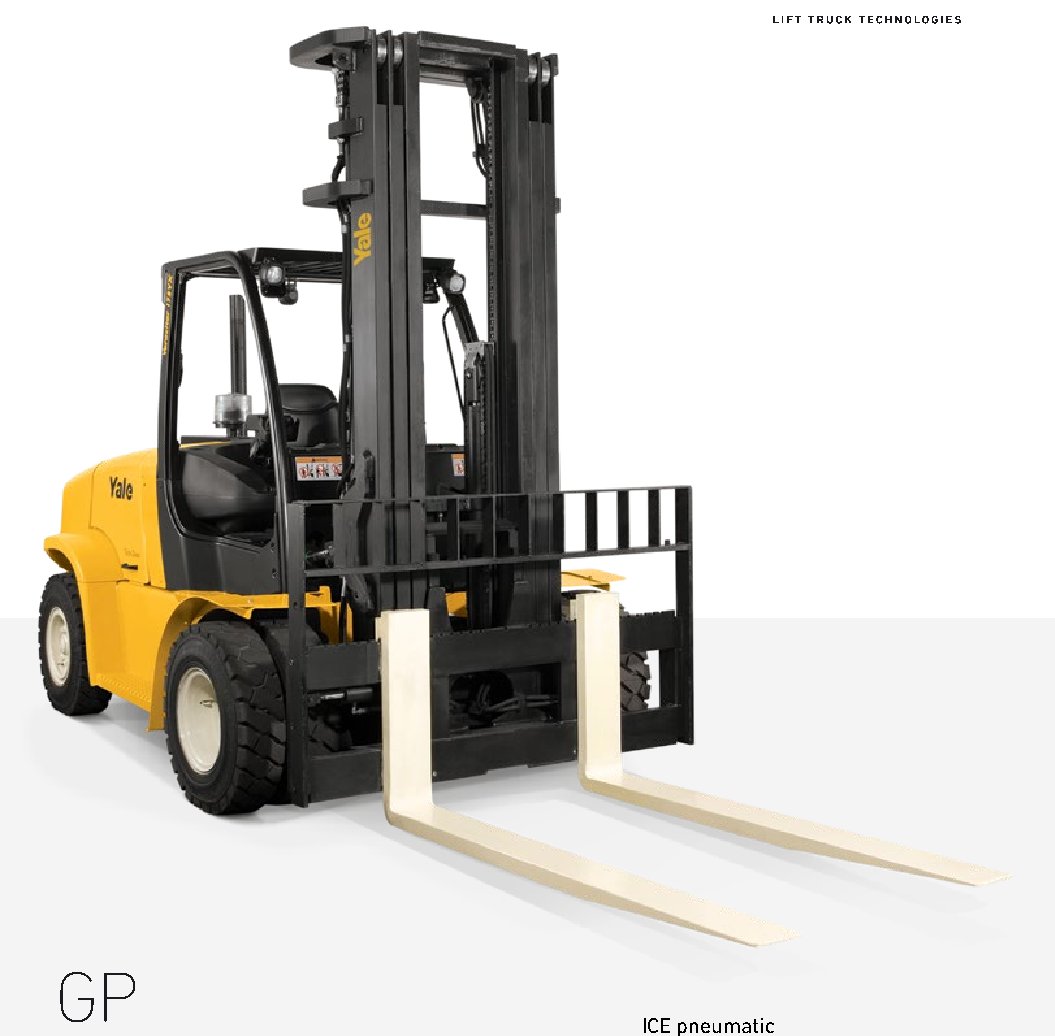

Yale GP155VX Specs

Quick-reference specifications for the Yale GP155VX forklift, taken from the manufacturer’s spec sheet.

Performance 4 specs

Rated capacity	15,500 lb (7,000 kg)
Mast tilt, forward/backward	5 / 10 degrees
Turning radius, minimum outside (OTR)	133.4 in (3388 mm)
Turning radius, minimum inside (ITR)	9.1 in (230 mm)

Load center, distance	24 in (610 mm)
Step height	12.6 in (321 mm)
Tire type – cushion, solid, pneumatic	Pneumatic
Track width, front / rear	72.7 / 60.5 in (1846 / 1535 mm)
Lift height, w/LBR (TOF) (rounded down)	212 in (5400 mm)
Std free lift height (TOF) (rounded down)	6 in (160 mm)
Optional full free lift w/ LBR (TOF) (rounded down)	95 in (2416 mm)
Standard forks, thickness x width x length	2.4 x 5.9 x 48 in (60 x 150 x 1219 mm)
Standard fork spread, minimum inside dimensions	6.3 in (160 mm)
Standard fork spread, maximum outside dimensions	73.9 in (1876 mm)
Overall length (to face of forks)	144.4 in (3669 mm)
Overall width	82.0 in (2082 mm)
Height, standard mast – lowered	148 in (3740 mm)
Height, standard mast-extended w/o LBR (rounded up)	260 in (6595 mm)
Height, standard mast-extended w/ LBR (rounded up)	266 in (6754 mm)
Height, standard overhead guard (high) (rounded up)	100 in (2531 mm)
Height, standard overhead guard (cab) (rounded up)	101 in (2549 mm)
Length, center of wheels to face of forks	23.7 in (601 mm)
Wheelbase	88.0 in (2235 mm)
Ground clearance under mast, RL	5.7 in (146 mm)
Ground clearance, center of wheelbase	10.0 in (253 mm)
Tire size, front / rear	8.25 X 15 14PR / 8.25 X 15 14PR

Weight, standard truck NL	21013 lb (9531 kg)
Weight, standard truck RL	36547 lb (16577 kg)
Axle loading, static front/rear NL	9269/11745 lb (4204/5327 kg)
Axle loading, static front/rear RL	33213/3334 lb (15065/1512 kg)
