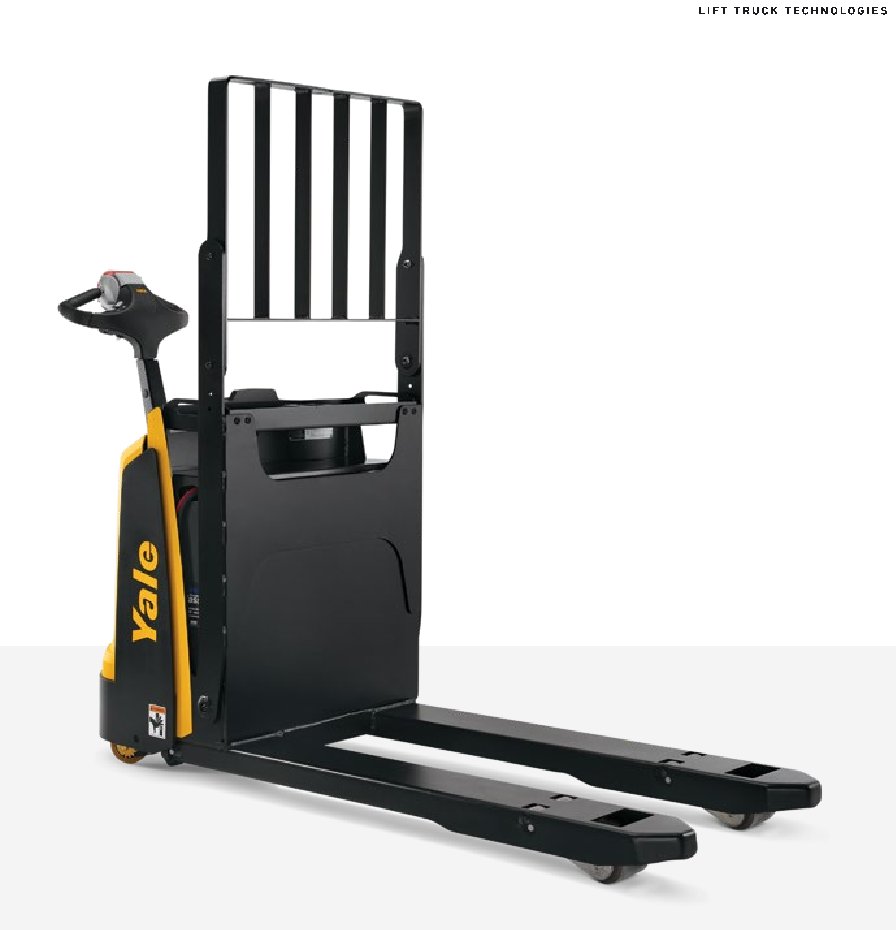

Yale MPB045VH Specs
Quick-reference specifications for the Yale MPB045VH forklift, taken from the manufacturer’s spec sheet.
- Rated capacity
- 4500 lb2041 kg
Performance 4 specs
| Rated capacity | 4500 lb (2041 kg) |
|---|---|
| Maximum travel speed – Chassis first – NL/RL | 3.7/3.7 mph (6.0/6.0 kph) |
| Traction motor control method type | AC transistor |
| Service brake type | Electro-mechanical |
Dimensions 11 specs
| Fork length – Nominal | 36 in (914 mm) |
|---|---|
| Fork length – Actual | 34 in (866 mm) |
| Fork overall width | 26.4 in (670 mm) |
| Fork width – Individual fork | 7 in (172 mm) |
| Wheelbase – Raised | 41.0 in (1042 mm) |
| Wheelbase – Lowered | 44.2 in (1122 mm) |
| Overall length | 56.8 in (1442 mm) |
| Overall lift height – Top of forks | 8.4 in (214 mm) |
| Total lift | 5.1 in (130 mm) |
| Truck overall width | 28.0 in (712 mm) |
| Chassis length | 22.7 in (576 mm) |
Power / Engine 6 specs
| Power type | 24 Volt |
|---|---|
| Axle loading – drive – static w/max. weight battery – NL | 767 lb (348 kg) |
| Ampere hours – Maximum | 300 ah |
| Ampere hours – Minimum | 158 ah |
| Maximum weight | 377 lb (171 kg) |
| Minimum weight | 309 lb (140 kg) |
