Telehandler · Bobcat

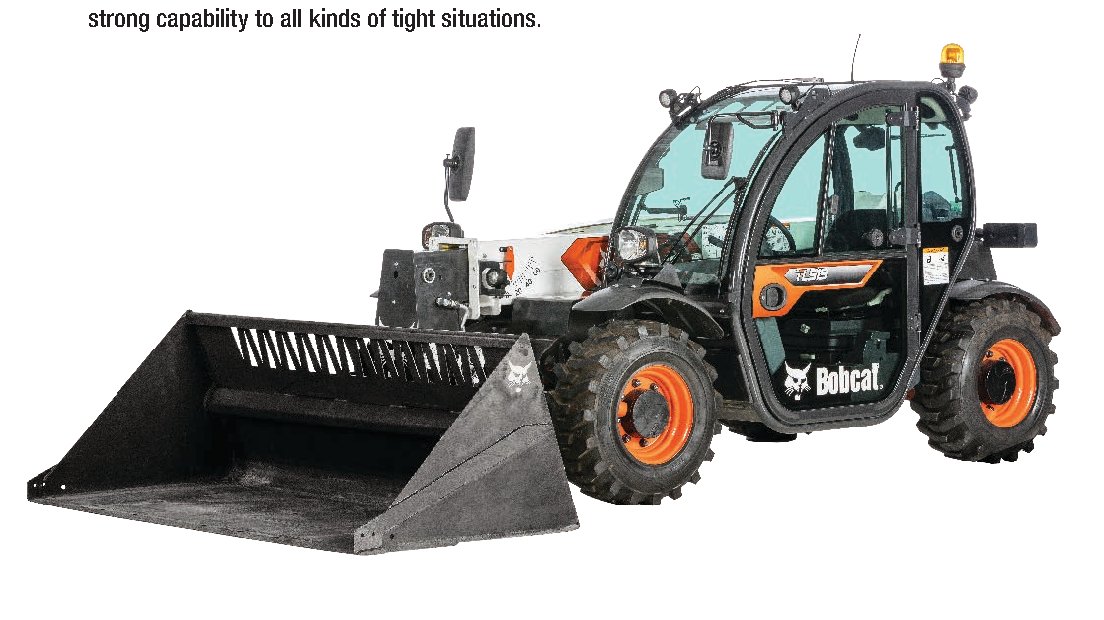

Bobcat TL519 Specs
Quick-reference specifications for the Bobcat TL519 telehandler, taken from the manufacturer’s spec sheet.
- Max. Rated Capacity
- 5512 lb2500 kg
- Operating Weight
- 9898 lb4490 kg
Performance 8 specs
| Max. Rated Capacity | 5512 lb (2500 kg) |
|---|---|
| Max. Rated Capacity at Full Height | 3968 lb (1800 kg) |
| Max. Rated Capacity at Full Reach | 1807 lb (820 kg) |
| Max. Reach | 134.3 in (3410 mm) |
| Reach at Max. Height (24″ load center) | 134.3 in (3410 mm) |
| Reach at Dump Height | 15.5 in (393 mm) |
| Four-Wheel Drive | 2-Speed Hydrostatic Transmission |
| Rated rpm | 2400 rpm |
Dimensions 11 specs
| Lift Height | 232.7 in (5910 mm) |
|---|---|
| Tires | 12 x 16.5 |
| Length Fork Face to Rear | 157 in (3989 mm) |
| Length Front Tire to Rear | 135.5 in (3442 mm) |
| Wheelbase | 92.9 in (2360 mm) |
| Ground Clearance | 9.8 in (250 mm) |
| Cab Height | 76 in (1930 mm) |
| Cab Height With Beacon | 82.1 in (2085 mm) |
| Width | 72.1 in (1832 mm) |
| Inside Turning Clearance | 45.9 in (1165 mm) |
| Fork Turning Clearance | 168.1 in (4271 mm) |
Weight 1 spec
| Operating Weight | 9898 lb (4490 kg) |
|---|
Power / Engine 3 specs
| Horsepower | 74.0 hp (54.6 kW) |
|---|---|
| Torque @ 1600 rpm | 206.5 ft.-lb (280 Nm) |
| Displacement | 146.0 cu. in (2.4 L) |
Hydraulics / Fluids 4 specs
| Auxiliary Hydraulic Flow | 21.1 gpm (80 L/min.) |
|---|---|
| Hydraulic Pressure | 3626 psi (250 bar) |
| Fuel Tank Capacity | 17.2 gal (65.0 L) |
| Standard Flow | 21.1 gpm (80.0 L/min.) |
