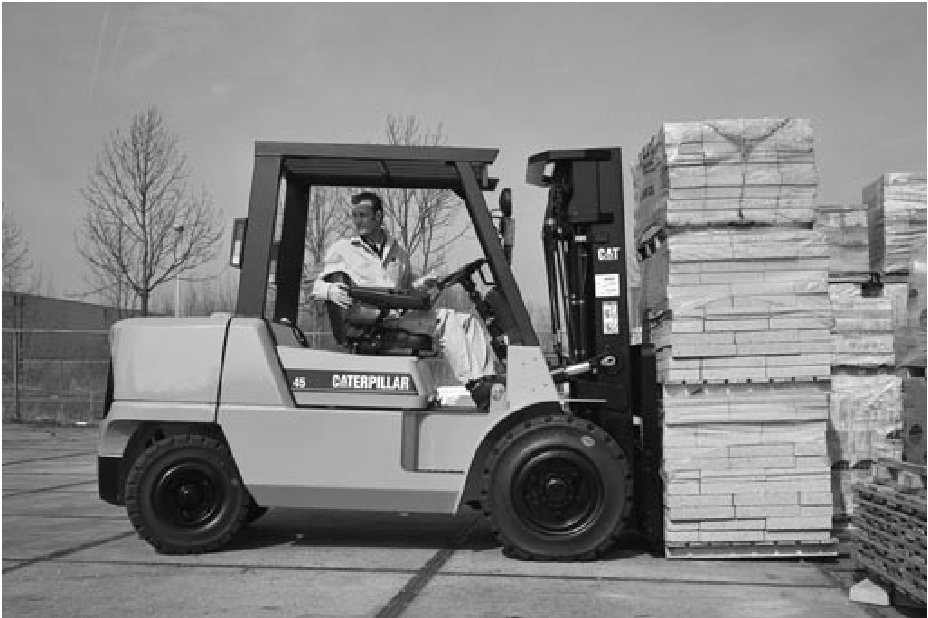

Caterpillar DP40KL Specs

Quick-reference specifications for the Caterpillar DP40KL forklift, taken from the manufacturer’s spec sheet.

Performance 2 specs

Axle loading with rated load, front/rear	8860/1260 kg
Service brakes	Hydraulic

Wheelbase y (mm)	2000
Tyre dimensions, front	300 x 15-18 PR
Tyre dimensions, rear	7.00 x 12-14PR
Seat height h7 (mm)	1093
Fork dimensions (thickness, width, length) s,e,l (mm)	50,150, 1220
Fork carriage to DIN 15 173 A/B/no	3A
Ground clearance centre of wheelbase, with load m2 (mm)	252

Truck weight, without load	6120 kg
Axle loading without load, front/rear	2550/3570 kg

Power source	Diesel
