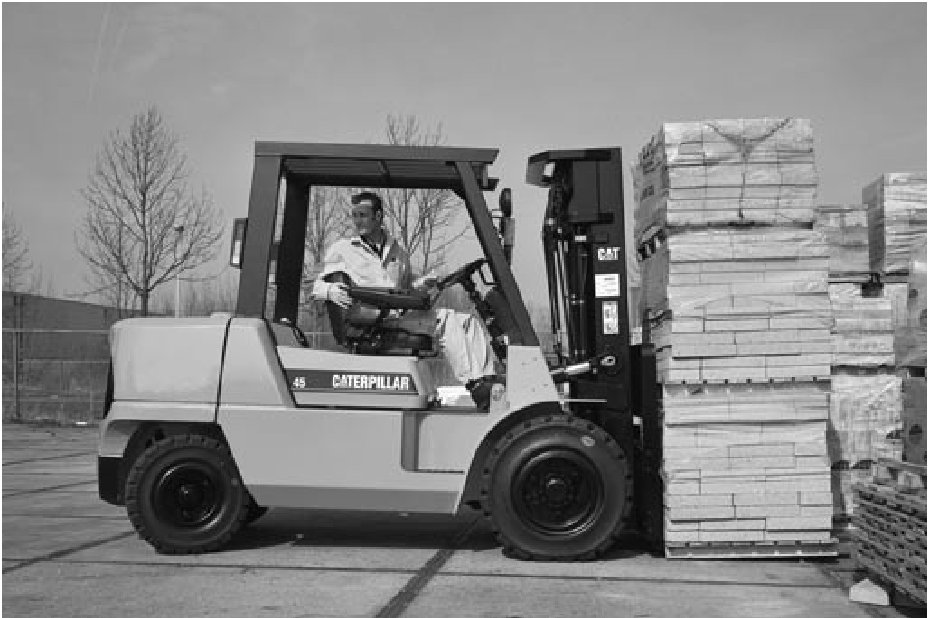

Caterpillar DP40K Specs
Quick-reference specifications for the Caterpillar DP40K forklift, taken from the manufacturer’s spec sheet.
Performance 6 specs
| Axle loading with rated load, front/rear | 8670/1040 kg |
|---|---|
| Travel speed, with/without load | 17,5 / 19,5 km/h |
| Lifting speed, with/without load | 5.00 / 5.20 m/s |
| Lowering speed, with/without load | 5.00 / 5.00 m/s |
| Rated drawbar pull, with/without load | 19400 / 17500 N |
| Rated speed to DIN 70020 | 2450 rpm |
Dimensions 7 specs
| Wheelbase y (mm) | 2000 |
|---|---|
| Tyre dimensions, front | 8.25 x 15-14 PR |
| Tyre dimensions, rear | 7.00 x 12-14PR |
| Seat height h7 (mm) | 1093 |
| Fork dimensions (thickness, width, length) s,e,l (mm) | 50,150, 1220 |
| Fork carriage to DIN 15 173 A/B/no | 3A |
| Ground clearance centre of wheelbase, with load m2 (mm) | 252 |
Weight 2 specs
| Truck weight, without load | 5710 kg |
|---|---|
| Axle loading without load, front/rear | 2560/3150 kg |
Hydraulics / Fluids 2 specs
| Service brakes (mechanical/hydraulic/electric/pneumatic) | Hydraulic |
|---|---|
| Operating pressure for attachments | 191 bar |
