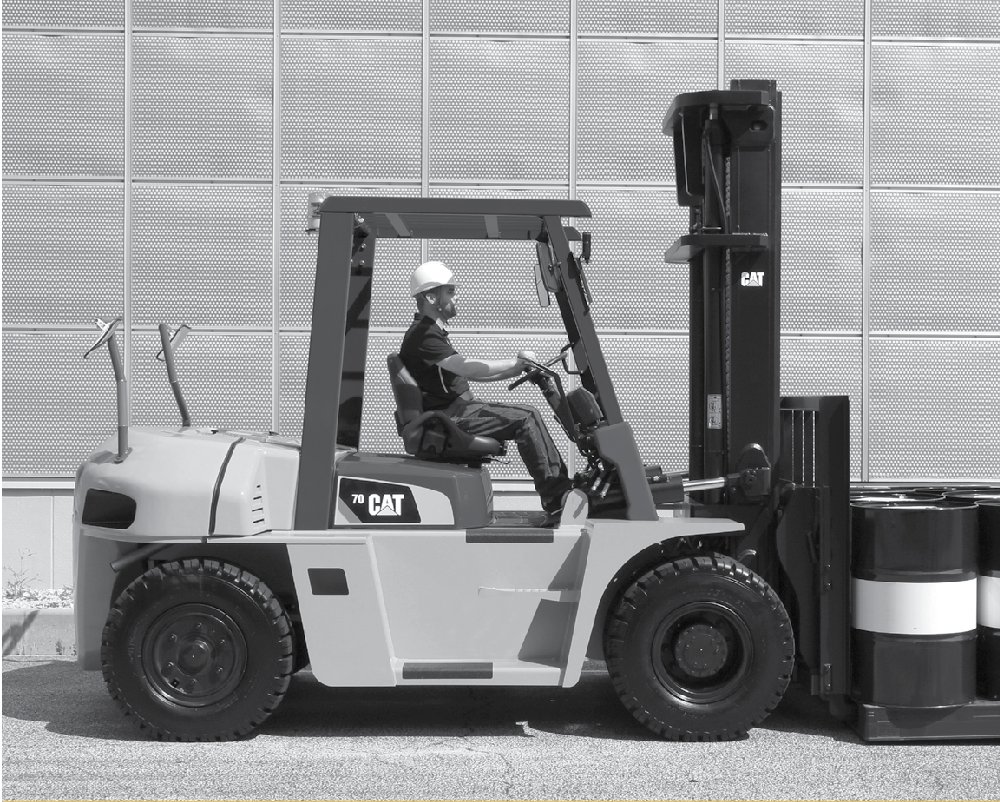

Caterpillar DP70 Specs

Quick-reference specifications for the Caterpillar DP70 forklift, taken from the manufacturer’s spec sheet.

Performance 10 specs

Load capacity	7000 kg
Load centre distance	600 mm
Mast tilt, forwards/backwards	6/12 °
Minimum distance between centres of rotation	1200 mm
Travel speed, with/without load	26.0 / 30.0 km/h
Lifting speed, with/without load	0.46 / 0.55 m/s
Lowering speed, with/without load	0.45 / 0.50 m/s
Rated drawbar pull, with/without load (@1.6 km/h)	52900 / 21600 N
Gradeability, with/without load (@1.6 km/h)	29 / 19 %
Rated speed to DIN 70 020	2000 rpm

Wheelbase	2250 mm
Tyre dimensions, front	8.25X15-14PR
Tyre dimensions, rear	8.25X15-14PR
Track width (centre of tyres), front	1470 mm
Track width (centre of tyres), rear	1700 mm
Height with mast lowered	2500 mm
Free lift	215 mm
Lift height	3000 mm
Overall height with mast raised	4420 mm
Height to top of overhead guard	2450 mm
Seat height	1310 mm
Tow coupling height	430 mm
Overall length	4820 mm
Length to fork face (includes fork thickness)	3600 mm
Overall width	1995 mm
Fork dimensions (thickness, width, length)	70 x 150 x 1220 mm
Fork carriage to DIN 15 173 A/B/no	No
Fork carriage width	1710 mm
Working aisle width with 1000 x1200 mm pallets, crosswise	5185 mm
Working aisle width with 800 x1200 mm pallets, lengthwise	5385 mm
Turning circle radius	3360 mm

Fuel consumption according to VDI 60 cycle	7.2 l/h
Max torque (S.A.E. gross)	417 Nm

Service brakes (mechanical/hydraulic/electric/pneumatic)	Hydraulic/Mechanical
Maximum operating pressure for attachments	200 bar
Noise level, value at operator’s ear (EN 12053)	85 dB (A)
