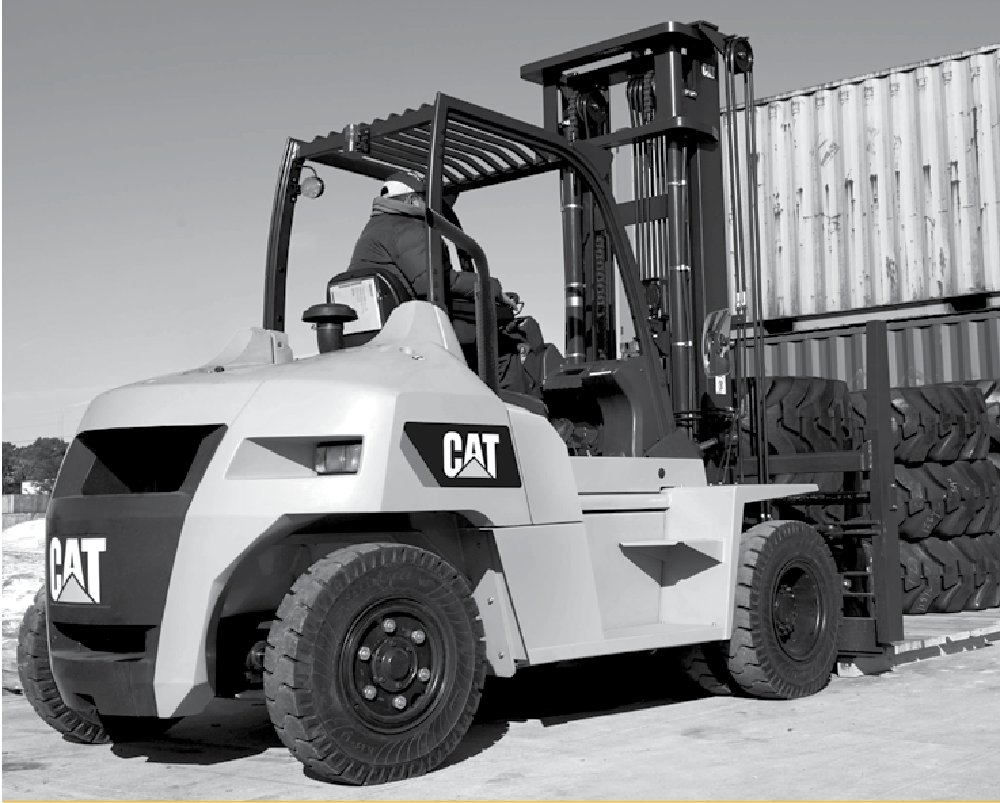

Caterpillar DP70N1 Specs
Quick-reference specifications for the Caterpillar DP70N1 forklift, taken from the manufacturer’s spec sheet.
- Gradeability, with/without load
- 25 %
Performance 12 specs
| Load capacity | 7000 kg |
|---|---|
| Mast tilt, forwards/backwards | 6/12 ° |
| Minimum distance between centres of rotation | 1260 mm |
| Travel speed, with/without load | 26.0 / 29.0 km/h |
| Lifting speed, with/without load | 0.47 / 0.49 m/s |
| Lowering speed, with/without load | 0.50 / 0.50 m/s |
| Rated drawbar pull, with/without load | 39600 / – N |
| Maximum drawbar pull, with/without load | 53200 / – N |
| Gradeability, with/without load | 25 % |
| Maximum gradeability, with/without load | 35 % |
| Rated speed to DIN 70 020 | 2480 rpm |
| Noise level, value at operator’s ear (EN 12053) | 86.5 dB (A) |
Dimensions 17 specs
| Load centre distance | 600 mm |
|---|---|
| Wheelbase | 2300 mm |
| Tyre dimensions, front | 8.25X15-12PR |
| Tyre dimensions, rear | 8.25X15-12PR |
| Track width (centre of tyres), front | 1650 mm |
| Track width (centre of tyres), rear | 1650 mm |
| Height to top of overhead guard | 2610 mm |
| Seat height | 1592 mm |
| Tow coupling height | 485 mm |
| Overall length | 4800 mm |
| Length to fork face (includes fork thickness) | 3580 mm |
| Overall width | 2170 mm |
| Fork dimensions (thickness, width, length) | 60 x 150 x 1220 mm |
| Fork carriage width | 1700 mm |
| Working aisle width with 1000 x1200 mm pallets, crosswise | 5095 mm |
| Working aisle width with 800 x1200 mm pallets, lengthwise | 5295 mm |
| Turning circle radius | 3310 mm |
Hydraulics / Fluids 2 specs
| Service brakes (mechanical/hydraulic/electric/pneumatic) | Hydraulic |
|---|---|
| Maximum operating pressure for attachments | 191 bar |
