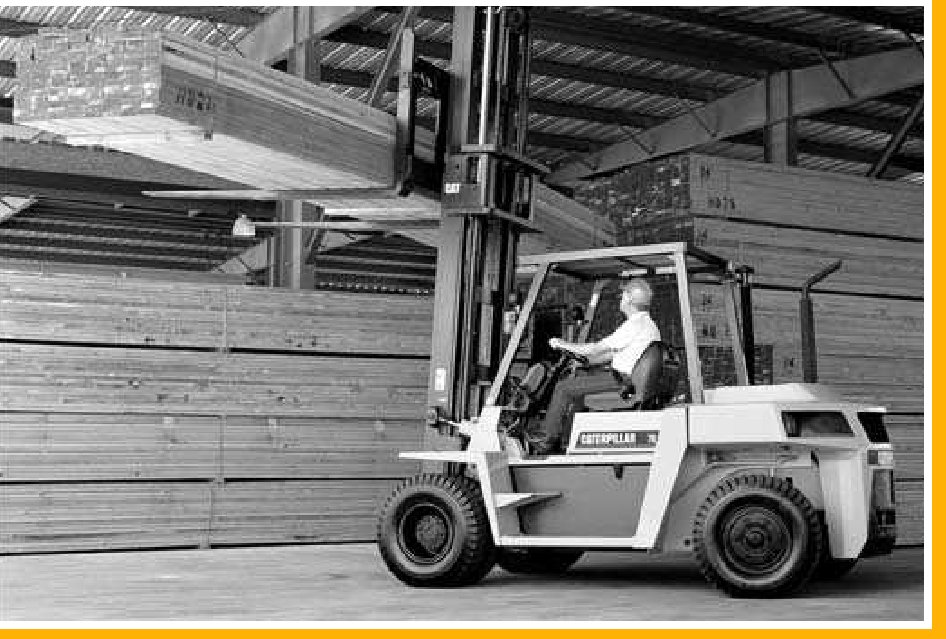

Caterpillar DP80 Specs

Quick-reference specifications for the Caterpillar DP80 forklift, taken from the manufacturer’s spec sheet.

Performance 12 specs

Lifting capacity Q	8.0 t
Axle loading with rated load, front/rear	17330 / 2060 kg
Axle loading without rated load, front/rear	5390 / 6000 kg
Mast tilt, forwards/backward ∂/ß	15 / 10 °
Minimum distance between centres of rotation b	1475 mm
Travel speed, with/without load	28.5 / 33.5 km/h
Lifting speed, with/without load	0.50 / 0.53 m/s
Lowering speed, with/without load	0.50 / 0.50 m/s
Rated drawbar pull, with/without load (60 min short duty)	71950 / 41700 N
Gradeability, with/without load	41.0 / 29.0 %
Service brakes	Pneum. /Hydr.
Rated speed according to DIN 70020	2200 rpm

Wheelbase y	2580 mm
Tyre dimensions, front	9.00 x 20- 12PR
Tyre dimensions, rear	9.00 x 20- 12PR
Distance between centreline of tyres, front b	1820 mm
Distance between centreline of tyres, rear b	1750 mm
Height with mast lowered h	2925 mm
Standard free lift h	220 mm
Standard lift height h	4000 mm
Overall height with mast raised h	5325 mm
Height to top of overhead guard h	2565 mm
Seat height h	1455 mm
Tow coupling height h	585 mm
Overall length l	5210 mm
Length to fork face (includes fork thickness) l	3990 mm
Overall width (dual tyres) b1/b	2390 mm
Forks dimensions (thickness, width, length) s,e,l	60 x 180 x 1220 mm
Fork carriage to DIN 15 173 A/B/no	No
Fork carriage width b	1830 mm
Ground clearance centre of wheelbase, with load m	280 mm
Working aisle width with 1000 x 1200 mm pallets Ast	5615 mm
Working aisle width with 800 x 1200 mm pallets Ast	5415 mm
Turning circle radius Wa	3740 mm

Power source	Diesel
Truck weight, without load / including battery	11390 kg
Number of cylinders / Displacement	6 / 7545 cm3

Operating pressure for attachments	181 bar
