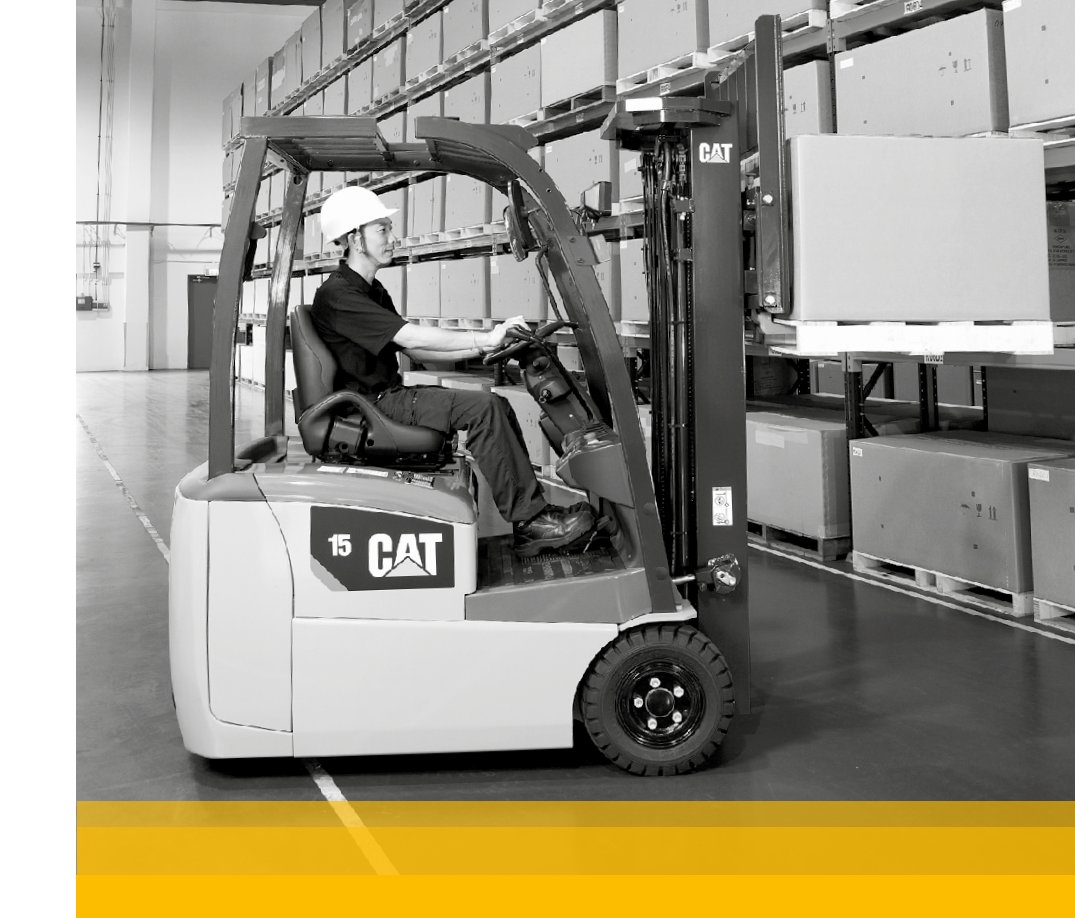

Caterpillar EP15T Specs

Quick-reference specifications for the Caterpillar EP15T forklift, taken from the manufacturer’s spec sheet.

Download Spec Sheet (PDF)View PDF

Gradeability, with/without load: 7.5/12.5 %

Performance 13 specs

Load capacity Q	1500 kg
Load centre distance c	500 mm
Mast tilt, forwards/backwards ∂/ß	5 / 7.5 °
Minimum distance between centres of rotation b	0 mm
Travel speed, with/without load	15 / 16.5 km/h
Lifting speed, with/without load	0.38 / 0.61 m/s
Lowering speed, with/without load	0.55 / 0.50 m/s
Gradeability, with/without load	7.5/12.5 %
Maximum gradeability, with/without load	18/20 %
Acceleration time (10 metres) with/without load	4.7/4.0 s
Service brakes	Hydraulic
Type of drive control	FET
Noise level, value at operator’s ear (EN 12053)	< 75 dB (A)

Dimensions 19 specs

Wheelbase y	1320 mm
Tyre dimensions, front	18×7-8-14PR
Tyre dimensions, rear	15×4 1/2-8-12PR
Track width (centre of tyres), front b	920 mm
Track width (centre of tyres), rear b	250 mm
Height with mast lowered (see tables) h	1975 mm
Free lift (see tables) h	115 mm
Lift height (see tables) h	3000 mm
Overall height with mast raised h	4015 mm
Height to top of overhead guard h	2050 mm
Seat height h	955 mm
Tow coupling height h	575 mm
Overall length l	2955 mm
Length to fork face (includes fork thickness) l	1885 mm
Overall width b1/b	1090 mm
Fork dimensions (thickness, width, length) s, e, l	35x100x1070 mm
Fork carriage to DIN 15 173 A/B/no	2A
Fork carriage width b	920 mm
Turning circle radius Wa	1510 mm

Power / Engine 4 specs

Power source	Electric
Lift motor output at 15% duty factor	9.5 kW
Battery voltage/capacity at 5-hour discharge	48 V / 350 Ah
Battery weight	595 kg

Hydraulics / Fluids 2 specs

Operating pressure for attachments	137 bar
Oil flow for attachments	60 l/min
