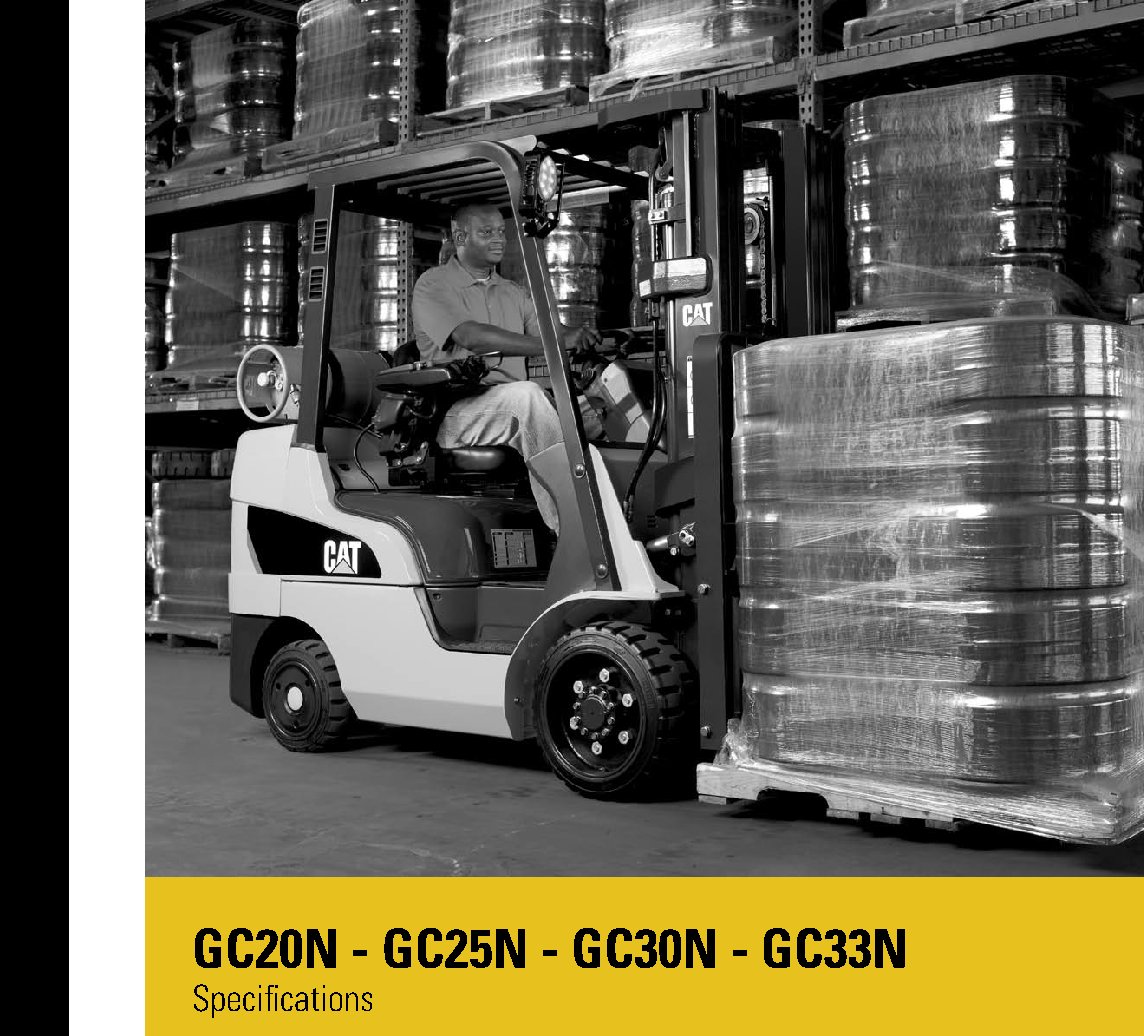

Caterpillar GC30 Specs
Quick-reference specifications for the Caterpillar GC30 forklift, taken from the manufacturer’s spec sheet.
- Gradeability, with/without load
- 33/- %
Performance 12 specs
| Load capacity | 3000 kg |
|---|---|
| Load centre distance | 500 mm |
| Travel speed, with/without load | 16.5 / 17 km/h |
| Lifting speed, with/without load | 0.53 / 0.54 m/s |
| Lowering speed, with/without load | 0.50 / 0.50 m/s |
| Rated drawbar pull, with/without load | 20000/- N |
| Maximum drawbar pull, with/without load (5 min short duty) | 22600/- N |
| Gradeability, with/without load | 33/- % |
| Maximum gradeability, with/without load | 35/17 % |
| Rated / Nominal output to ISO 1585 | 47 kW |
| Rated speed to DIN 70 020 | 2700 rpm |
| Noise level, value at operator’s ear (EN 12053) | 89.1 dB (A) |
Dimensions 19 specs
| Wheelbase | 1400 mm |
|---|---|
| Tyre dimensions, front | 21 x 8 x 15 |
| Track width (centre of tyres), front | 911.8 mm |
| Track width (centre of tyres), rear | 890 mm |
| Height with mast lowered | 2110 mm |
| Free lift | 90 mm |
| Lift height | 3265 mm |
| Overall height with mast raised | 4540 mm |
| Height to top of overhead guard | 2075 mm |
| Seat height | 1050 mm |
| Overall length | 3475 mm |
| Length to fork face (includes fork thickness) | 2450 mm |
| Overall width | 1115 / 1155 mm |
| Fork dimensions (thickness, width, length) | 45 / 125 / 1070 mm |
| Fork carriage to DIN 15 173 A/B/no | 3A |
| Fork carriage width | 960 mm |
| Working aisle width with 1000 x1200 mm pallets, crosswise | 3730 mm |
| Working aisle width with 800 x1200 mm pallets, crosswise | 3530 mm |
| Turning circle radius | 2095 mm |
Hydraulics / Fluids 2 specs
| Service brakes (mechanical/hydraulic/electric/pneumatic) | Hydraulic |
|---|---|
| Maximum operating pressure for attachments | 158 bar |
