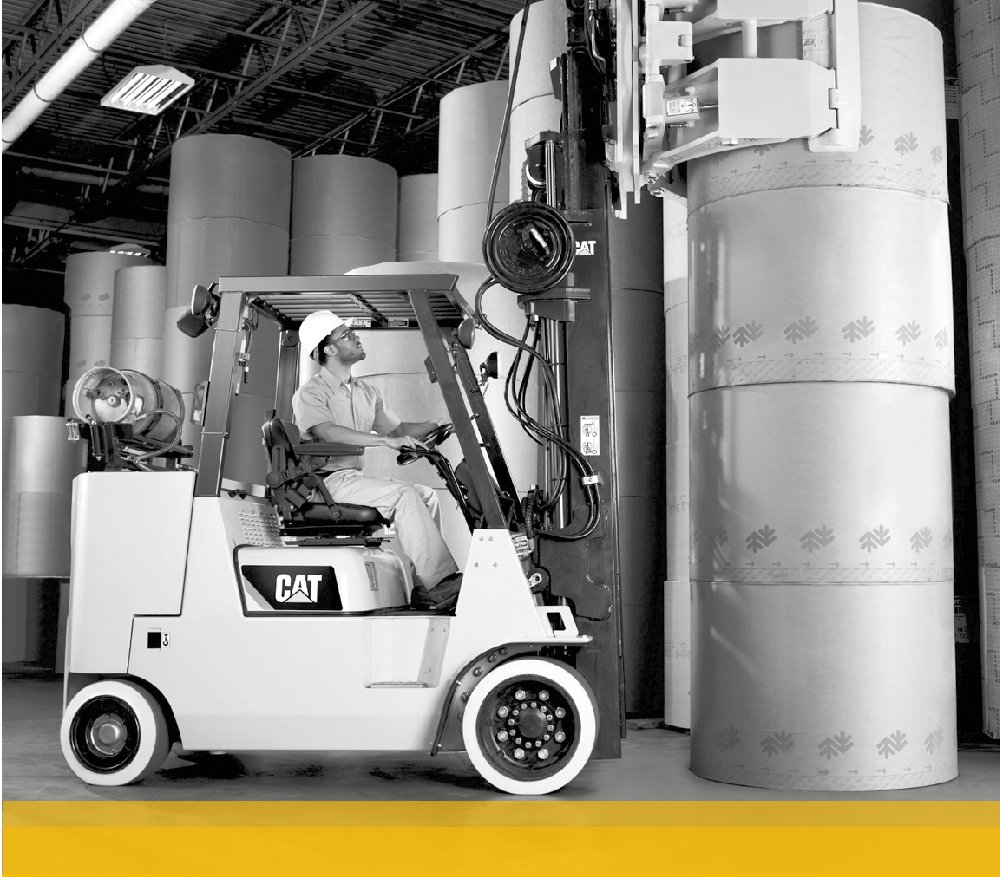

Caterpillar GC35K Specs
Quick-reference specifications for the Caterpillar GC35K forklift, taken from the manufacturer’s spec sheet.
- Gradeability, with/without load (@1.6 km/h) %
- 37/42 %
Performance 12 specs
| Load capacity Q | 3500 kg |
|---|---|
| Load centre distance c | 500 mm |
| Mast tilt, forwards/backwards α/β | 5/10° |
| Travel speed, with/without load | 19.0/19.5 km/h |
| Lifting speed, with/without load | 0.54/0.57 m/s |
| Lowering speed, with/without load | 0.55/0.50 m/s |
| Rated drawbar pull, with/without load (@1.6 km/h) N | 23780/- N |
| Maximum drawbar pull, with/without load (@1.6 km/h) N | 27460/- N |
| Gradeability, with/without load (@1.6 km/h) % | 37/42 % |
| Service brakes | Hydraulic |
| Rated speed to DIN 70 020 rpm | 2600 rpm |
| Noise level, value at operator’s ear (EN 12053) dB(A) | 83.5 dB (A) |
Dimensions 18 specs
| Wheelbase y | 1575 mm |
|---|---|
| Tyre dimensions, front | 22x9x16 |
| Tyre dimensions, rear | 18x7x12.1 |
| Track width (centre of tyres), front b | 940 mm |
| Track width (centre of tyres), rear b | 980 mm |
| Height with mast lowered (see tables) h | 2120 mm |
| Free lift (see tables) h | 150 mm |
| Lift height (see tables) h | 3050 mm |
| Overall height with mast raised h | 4250 mm |
| Height to top of overhead guard h | 2205 mm |
| Seat height h | 1200 mm |
| Overall length l | 3730 mm |
| Length to fork face (includes fork thickness) l | 2510 mm |
| Overall width b1/b | 1180/- mm |
| Fork dimensions (thickness, width, length) s, e, l | 50x150x1220 mm |
| Fork carriage to DIN 15 173 A/B/no | 3A |
| Fork carriage width b | 1125 mm |
| Turning circle radius Wa | 2235 mm |
Power / Engine 2 specs
| Power source | LPG |
|---|---|
| Max torque Nm | 285 Nm |
Hydraulics / Fluids 2 specs
| Maximum operating pressure for attachments bar | 200 bar |
|---|---|
| Oil flow for attachments l/min | 95 l/min |
