- Caterpillar GC40KSTR
Forklift · Caterpillar

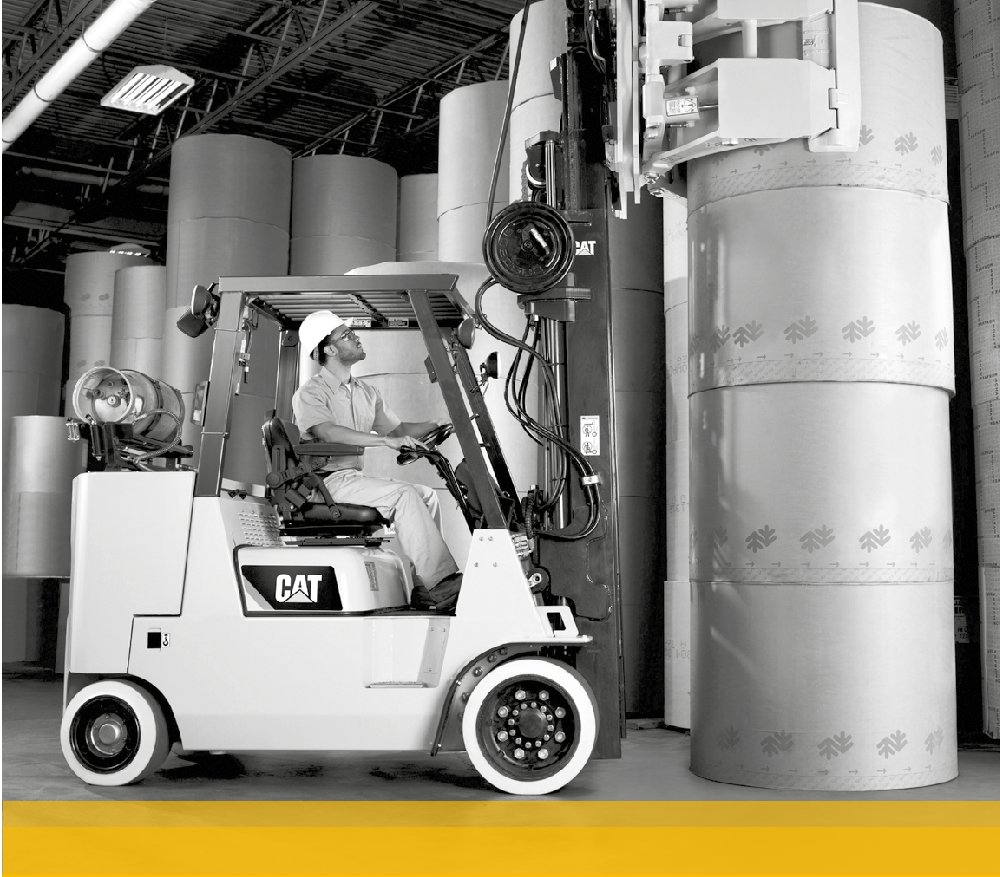

Caterpillar GC40KSTR Specs
Quick-reference specifications for the Caterpillar GC40KSTR forklift, taken from the manufacturer’s spec sheet.
- Gradeability, with/without load (@1.6 km/h)
- 32 %
Performance 12 specs
| Load capacity | 4000 kg |
|---|---|
| Load centre distance | 500 mm |
| Mast tilt, forwards/backwards | 5/10 ° |
| Travel speed, with/without load | 19.0/19.5 km/h |
| Lifting speed, with/without load | 0.54/0.57 m/s |
| Lowering speed, with/without load | 0.55/0.50 m/s |
| Rated drawbar pull, with/without load (@1.6 km/h) | 23780/- N |
| Maximum drawbar pull, with/without load (@1.6 km/h) | 27460/- N |
| Gradeability, with/without load (@1.6 km/h) | 32 % |
| Maximum gradeability, with/without load | 36 % |
| Rated speed to DIN 70 020 | 2600 rpm |
| Noise level, value at operator’s ear (EN 12053) | 83.5 dB (A) |
Dimensions 16 specs
| Wheelbase | 1575 mm |
|---|---|
| Tyre dimensions, front | 22x9x16 |
| Tyre dimensions, rear | 18x7x12.1 |
| Track width (centre of tyres), front | 940 mm |
| Track width (centre of tyres), rear | 980 mm |
| Height to top of overhead guard | 2205 mm |
| Seat height | 1200 mm |
| Overall length | 3630 mm |
| Length to fork face (includes fork thickness) | 2410 mm |
| Overall width | 1180/- mm |
| Fork dimensions (thickness, width, length) | 50x150x1220 mm |
| Fork carriage to DIN 15 173 A/B/no | 3A |
| Fork carriage width | 1125 mm |
| Working aisle width with 1000 x1200 mm pallets, crosswise | 3740 mm |
| Working aisle width with 800 x1200 mm pallets, lengthwise | 3540 mm |
| Turning circle radius | 2090 mm |
Power / Engine 1 spec
| Max torque | 285 Nm |
|---|
Hydraulics / Fluids 3 specs
| Service brakes (mechanical/hydraulic/electric/pneumatic) | Hydraulic |
|---|---|
| Maximum operating pressure for attachments | 200 bar |
| Oil flow for attachments | 95 l/min |
