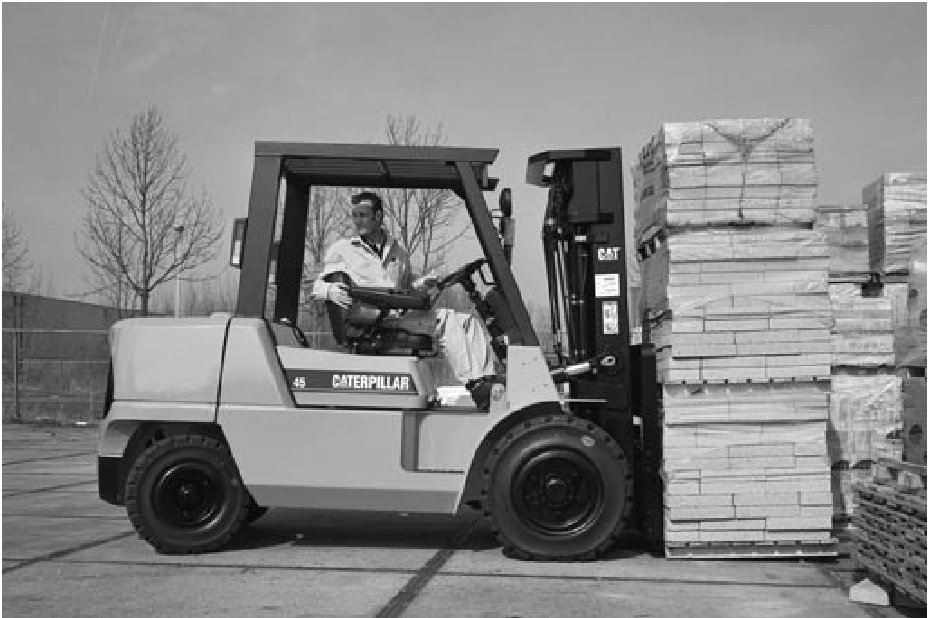

Caterpillar GP50K Specs

Quick-reference specifications for the Caterpillar GP50K forklift, taken from the manufacturer’s spec sheet.

Performance 11 specs

Lifting capacity Q	5 t
Axle loading with rated load, front/rear	10650/1400 kg
Mast tilt, forwards/backwards ∂/ß	6/10 °
Minimum distance between centres of rotation b	965 mm
Lifting speed, with/without load	4.40 / 4.40 m/s
Lowering speed, with/without load	5.00 / 5.00 m/s
Rated drawbar pull, with/without load	33000 / 20000 N
Gradeability, with/without load	29.4 / 25.7 %
Service brakes	Hydraulic
Rated speed to DIN 70020	2450 rpm
Noise level, mean value at operator’s ear	79 dB (A)

Wheelbase y	2150 mm
Tyre dimensions, front	300 x 15-18 PR
Tyre dimensions, rear	7.00 x 12-14PR
Distance between centreline of tyres, front b	1175 mm
Distance between centreline of tyres, rear b	1180 mm
Height with mast lowered h	2400 mm
Standard free lift h	100 mm
Standard lift height h	3300 mm
Overall height with mast raised h	4590 mm
Height to top of overhead guard h	2250 mm
Seat height h	1093 mm
Tow coupling height h	420 mm
Overall length l	4525 mm
Length to fork face (includes fork thickness) l	3305 mm
Overall width (single/dual tyres) b1/b	1460/1965 mm
Fork dimensions (thickness, width, length) s,e,l	60,150, 1220 mm
Fork carriage to DIN 15 173 A/B/no	3A
Fork carriage width b	1190 mm
Ground clearance centre of wheelbase, with load m	252 mm
Working aisle width with 1000 x1200 mm pallets Ast	4747 mm
Working aisle width with 800 x1200 mm pallets Ast	4547 mm
Turning circle radius Wa	2965 mm

Truck weight, without load	7050 kg
Axle loading without load, front/rear	2900/4150 kg

Power source	LPG
Number of cylinders/displacement	6 /4500 /cm3

Operating pressure for attachments	191 bar
