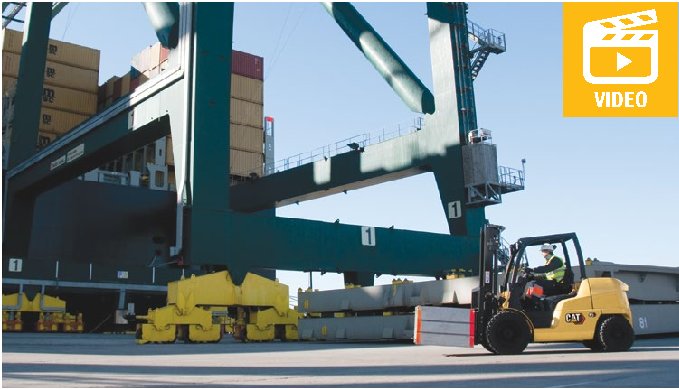

Caterpillar GP50N Specs
Quick-reference specifications for the Caterpillar GP50N forklift, from the manufacturer’s spec sheet and published specifications.
- Maximum Lift Height
- 10.83 ft3.3 m
Performance 10 specs
| Rated speed to DIN | 70 020 |
|---|---|
| Load Capacity (Nominal Load at COG) | 11,023 lb (5 t) |
| Maximum Lift Height | 10.83 ft (3.3 m) |
| Travel Speed (with load) | 22.0 km/h |
| Travel Speed (without load) | 22.5 km/h |
| Hoisting Speed (with load) | 0.49 m/s |
| Hoisting Speed (without load) | 0.52 m/s |
| Lowering Speed (with load) | 0.5 m/s |
| Maximum Climbing Ability | 26% |
| Turning Radius | 9.48 ft (2.89 m) |
Dimensions 3 specs
| Fork carriage to DIN | 15 173 A / B / no |
|---|---|
| Total Width | 77.36 in (1,965 mm) |
| Construction Height | 94.49 in (2,400 mm) |
Weight 1 spec
| Total Weight | 15,961 lb (7.24 t) |
|---|
Power / Engine 6 specs
| Engine Type | GCT GK45 |
|---|---|
| Engine Configuration | 6-cylinder inline |
| Engine Displacement | 4.5 L |
| Rated Horsepower | 96.6 HP (72 kW) |
| Max Torque | 288 Nm |
| Battery Voltage | 12 V |
