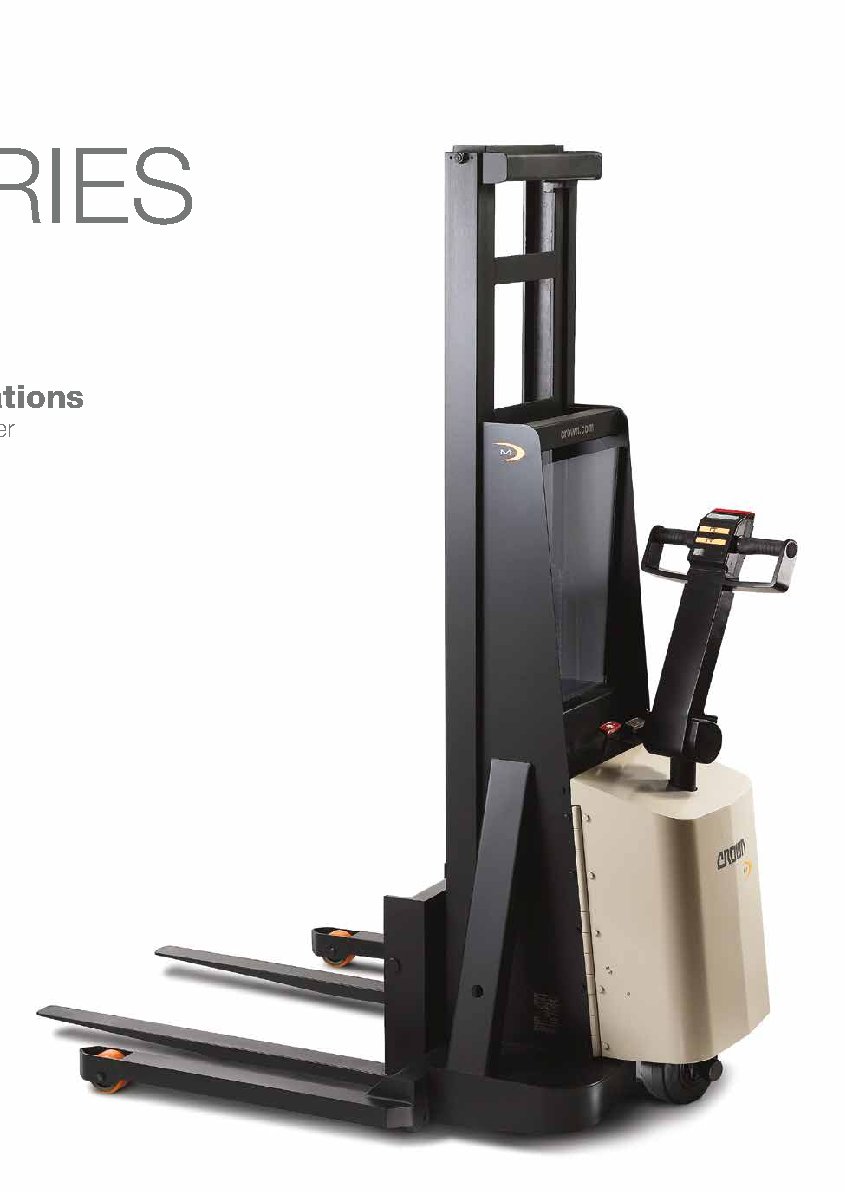

Crown 20MT Specs

Quick-reference specifications for the Crown 20MT forklift, taken from the manufacturer’s spec sheet.

Download Spec Sheet (PDF)View PDF

Performance 4 specs

Load Capacity	2000 lb (907 kg)
Load Center	24 in (610 mm)
Mast Type	Telescopic
Free Lift	50 / 60 / 70 in (1270 / 1525 / 1780 mm)

Dimensions 6 specs

Lifting Height	90 / 110 / 130 in (2285 / 2795 / 3300 mm)
Collapsed Height	71.5 / 81.5 / 91.5 in (1815 / 2070 / 2325 mm)
Extended Height	106.5 / 126.5 / 146.5 in (2705 / 3215 / 3720 mm)
Head Length	34.2 / 34.2 / 34.2 in (870 / 870 / 870 mm)
Fork Lengths	30, 36, 42, 48 in (760, 915, 1070, 1220 mm)
Fork Adjustment	6.7 to 25 in (170 to 635 mm)

Power / Engine 1 spec

Net Weight w/Batteries	1300 / 1400 / 1455 lb (590 / 635 / 660 kg)
