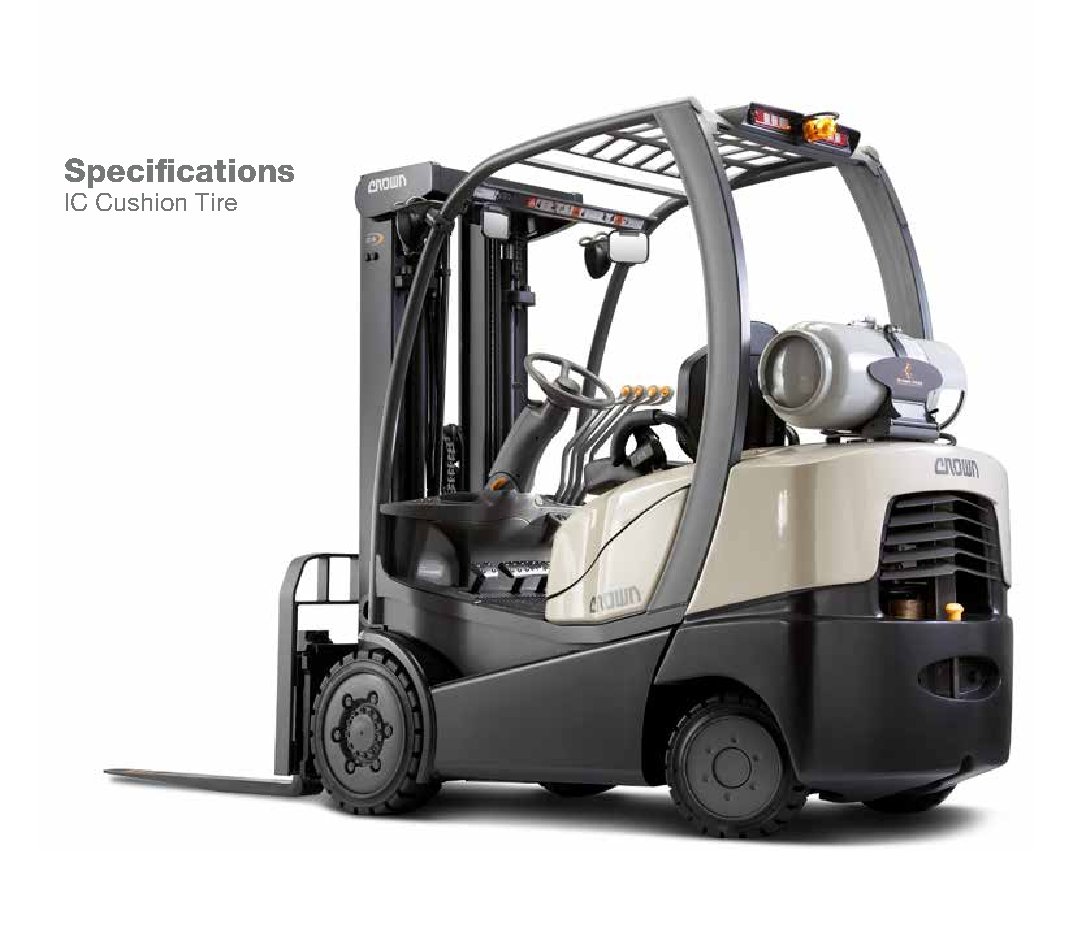

Crown C5 1000-40 Specs

Quick-reference specifications for the Crown C5 1000-40 forklift, taken from the manufacturer’s spec sheet.

Performance 12 specs

Load Capacity	4000 lb
Load Center Fork Face to Load CG	24 in
Steering Type	Hydrostatic
Turning Radius Outside	78.4 in
Speed Travel – Forward Empty / Loaded	11 / 10.9 mph
Speed Travel – Reverse Empty / Loaded	11 / 10.9 mph
Speed Lift Empty / Loaded	130 / 128 fpm
Speed Lower Empty / Loaded	91 / 93 fpm
Drawbar Pull – Maximum Empty / Loaded	4360 lb
Brakes Service	Foot / Hydraulic
Brakes Parking	Hand / Hydraulic
Rated Output (SAE gross) HP @ rpm	59 @ 2800

Tire Type	Cushion
Mast Lifting Height (MFH)	188 in
Free Lift Height	32.2 in
ForksStandardLxWxT	42 x 4 x 1.8 in
Forks Optional Lengths	36, 45, 48, 54, 60 in
TiltF/B	5 / 5 degree
Interlock Fork Height	95 in
Head Length Length to Fork Face	91.5 in
Width Overall Standard Tread	42.9 in
Width Overall Wide Tread	47 in
Height with LBR Mast Collapsed	83 in
Height with LBR Mast Extended	236 in
Load Distance Center of Wheel to Fork Face	16.4 in
Tires Size Front	21 x 7 x 15 in
Tires Size Rear	16 x 6 x 10.5 in
Wheelbase	55.9 in
Tread / Track Width Front Standard / Rear	35.9 / 35.9 in
Tread / Track Width Front Optional / Rear	40 / 35.9 in
Ground Clearance Center of Wheelbase	4.9 in
Ground Clearance Under mast	3.1 in

Power (Fuel) Type	LPG
Battery Volts	12 V
Engine Type	Industrial
No. of Cylinders / Displacement / Liters	4 Cyl / 2.4 L
Maximum Torque (SAE) ft.-lbs @ rpm	125 @ 1400
Transmission Type	Powershift

Auxiliary Function Relief Pressure	2600 psi
