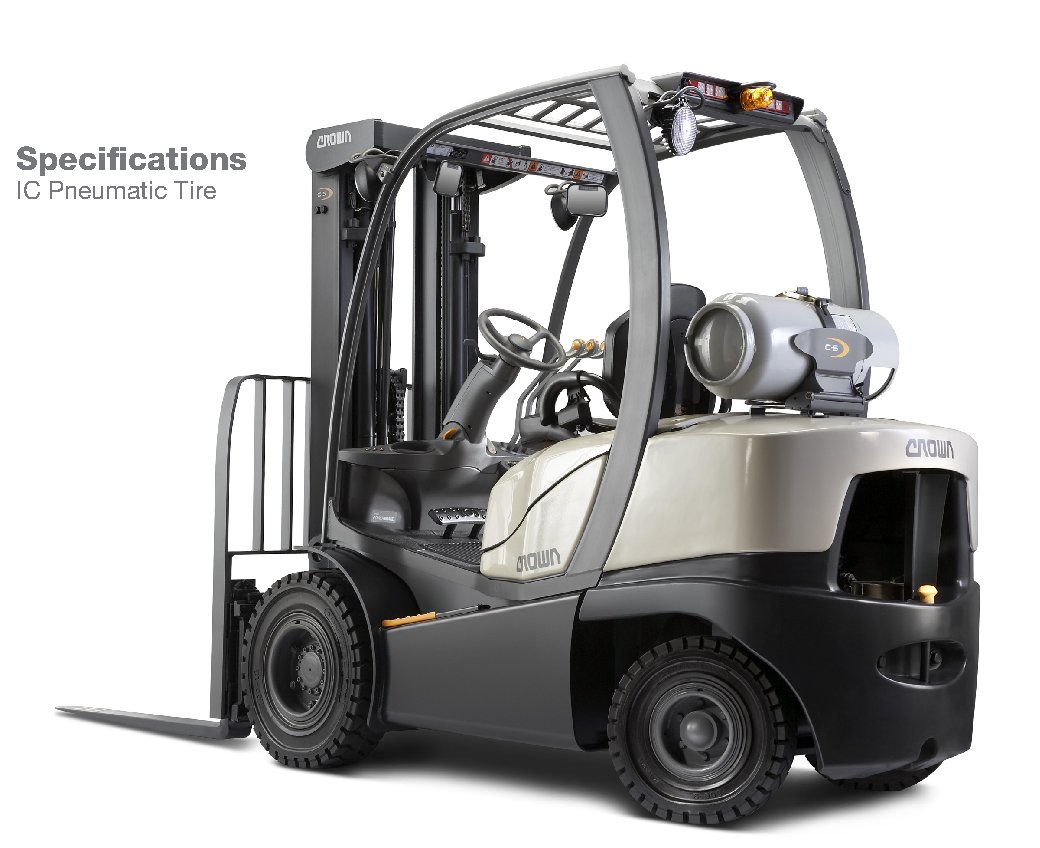

Crown C5 1050-60 Specs
Quick-reference specifications for the Crown C5 1050-60 forklift, from the manufacturer’s spec sheet and published specifications.
- Maximum Lift Height
- 60 in (Min) to 100 in (Max)
- Operating Weight
- 10,464 lb4.749 t
- Gradeability (Full Load)
- 20.3%
Performance 8 specs
| Mast Charts | 4000 lb capacity (0000 kg) |
|---|---|
| Load Capacity | 6,000 lb (2,722 kg) |
| Load Center | 24 in (610 mm) |
| Travel Speed (Full Load) | 12.5 mph (20.1 km/h) |
| Lifting Speed (Full Load) | 115 fpm (0.59 m/s) |
| Lowering Speed (Full Load) | 93 fpm (0.47 m/s) |
| Gradeability (Full Load) | 20.3% |
| Maximum Lift Height | 60 in (Min) to 100 in (Max) |
Dimensions 9 specs
| Overall Length | 106.3 in (2.7 m) |
|---|---|
| Overall Width | 50.9 in (1,293 mm) |
| Construction Height (Mast Collapsed) | 86 in (2,184 mm) |
| Maximum Lift Height | 100 in (254 cm) |
| ForkSize(T×W×L) | 1.8 × 5 × 42 in |
| Tilt Range | 5° forward / 5° backward |
| Turning Radius | 7.73 ft (2.355 m) |
| Tire Type Front | 28 × 9 – 15 |
| Tire Type Rear | 6.50 – 10 |
Weight 2 specs
| Gross Vehicle Weight | 8,720 lb (3,953 kg) |
|---|---|
| Operating Weight | 10,464 lb (4.749 t) |
Power / Engine 6 specs
| Displacement | 2.4 L |
|---|---|
| Rated Horsepower | 59 hp @ 2,800 rpm |
| Rated Torque | 125 ft-lb @ 1,400 rpm |
| Number of Cylinders | 4 |
| Battery Voltage | 12 V |
| Battery Cold Cranking Amps | 510 CCA |
Hydraulics / Fluids 2 specs
| Maximum Auxiliary Relief Pressure | 3,100 psi |
|---|---|
| Drawbar Pull Capacity (Empty/Loaded) | 4,360 lb |
