- Crown ESR5000-1.4
Forklift · Crown

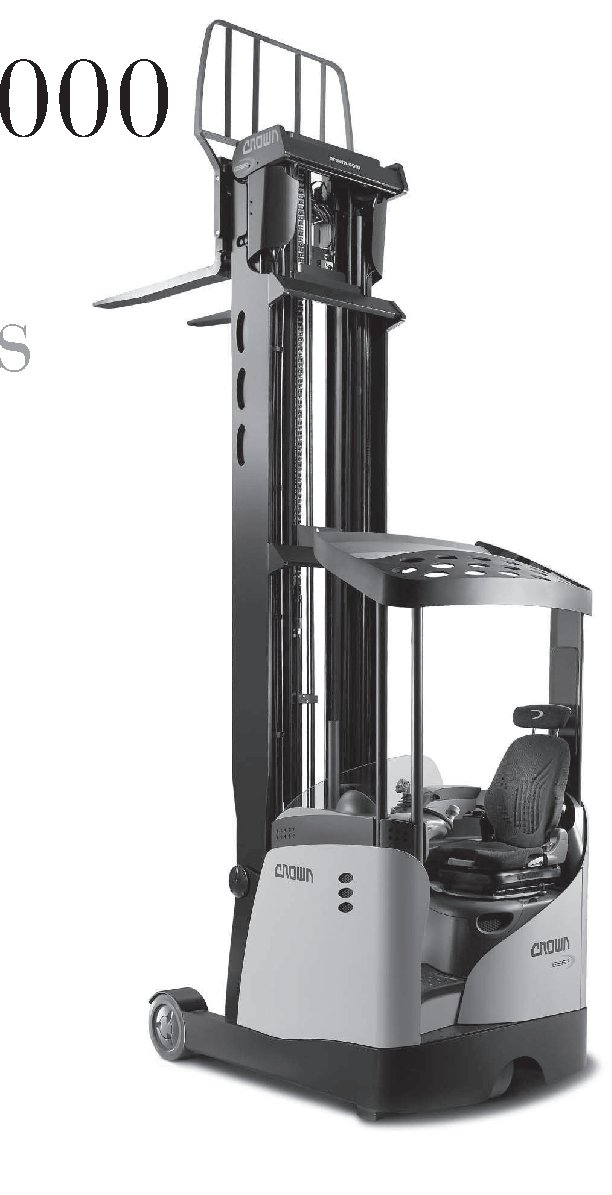

Crown ESR5000-1.4 Specs
Quick-reference specifications for the Crown ESR5000-1.4 forklift, from the manufacturer’s spec sheet and published specifications.
- Max Gradeability
- 12%
Performance 11 specs
| Traction Motor | 60 min. rating |
|---|---|
| Lift Motor | 15% on time |
| Nominal Load Capacity | 3,086 lb (1.4 t) |
| Load Centre of Gravity | 600 mm |
| Travel Speed | 7.5 mph (12.0 km/h) |
| Max Lifting Height | 25.9 ft (7.9 m) |
| Lift Speed | 0.32 to 0.69 m/s |
| Lowering Speed (with load) | 0.41 to 0.65 m/s |
| Turning Radius | 5.4 ft (1645 mm) |
| Max Gradeability | 12% |
| Noise Level | 65 dB (A) |
Dimensions 8 specs
| Tyre Type | D/L |
|---|---|
| Total Width | 50.6 in (1285 mm) |
| Construction/Overhead Guard Height | 7.8 ft (2375 mm) |
| Seat Height | 1113 mm |
| Fork Dimensions | 1.5×3.9×45 in (38×100×1145 mm) |
| Fork Carriage Width | 770 mm / 750 mm |
| Overall Length Over Outriggers | 5.9 ft (1785 mm) |
| Wheelbase | 4.8 ft (1475 mm) |
Weight 2 specs
| Weight (without battery) | 5,775 lb (2.62 t) |
|---|---|
| Battery Weight | 1,654 lb (0.75 t) |
Power / Engine 3 specs
| Battery Size – DIN | Weight +5% |
|---|---|
| Voltage | 48 V |
| Hoist/Lift Motor | 13.6 kW |
Hydraulics / Fluids 1 spec
| Working Pressure (for attachments) | 210 bar |
|---|
