- Crown CGC20SC-9
Forklift · Crown

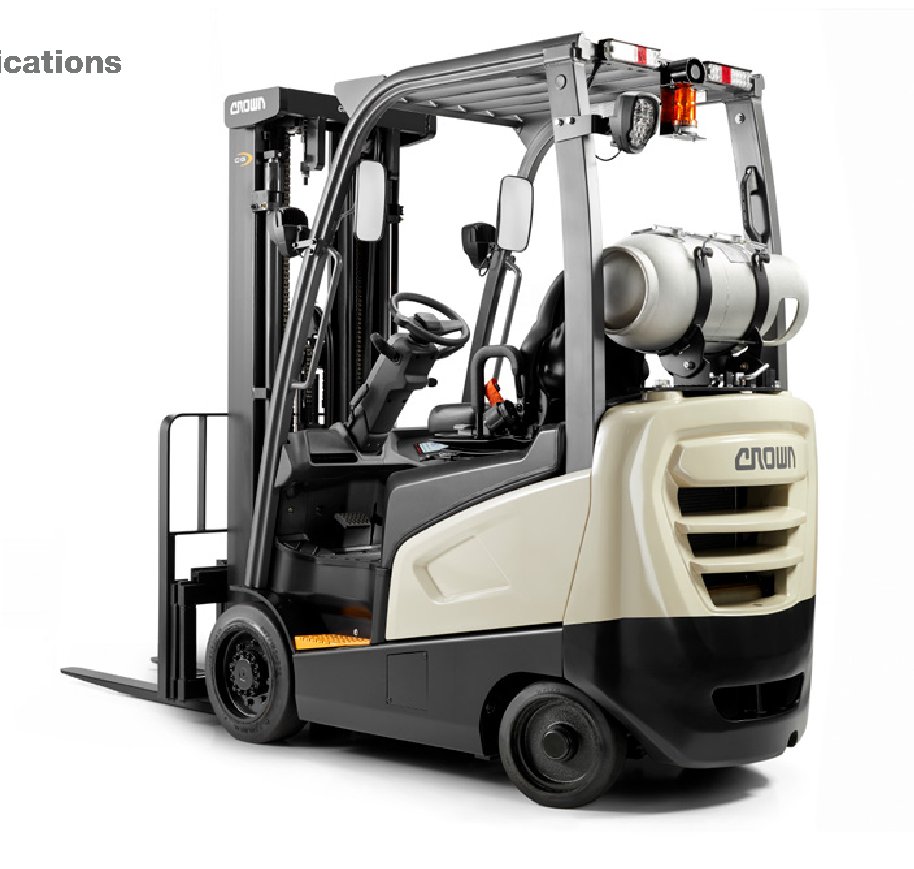

Crown CGC20SC-9 Specs
Quick-reference specifications for the Crown CGC20SC-9 forklift, taken from the manufacturer’s spec sheet.
- Gradeability @ 1 mph Loaded / Unloaded
- 31.0 / 56.1 %
Performance 13 specs
| Load Capacity At Rated Load Center | 4,000 lb (1,785 kg) |
|---|---|
| Steering Type | Hydrostatic |
| Tilt of Mast Forward / Backward | 6 / 8 deg |
| Turning Radius Minimum Outside | 74.4 in (1,891 mm) |
| Travel Speed Loaded / Unloaded | 11.1 / 11.1 mph (17.8 / 17.8 km/h) |
| Lifting Speed Loaded / Unloaded | 122 / 130 fpm (0.62 / 0.66 m/s) |
| Lowering Speed Loaded / Unloaded | 100.4 / 98.4 fpm (0.51 / 0.50 m/s) |
| Drawbar Pull @ 1 mph Loaded / Unloaded | 3,196 lb (1,450 kg) |
| Drawbar Pull Max. Loaded / Unloaded | 3,636 lb (1,649 kg) |
| Gradeability @ 1 mph Loaded / Unloaded | 31.0 / 56.1 % |
| Gradeability Max. Loaded / Unloaded | 36.5 / 70.3 % |
| Brakes Service | Foot / Hydraulic |
| Brakes Parking | Electro-mechanical |
Dimensions 14 specs
| Load Center Fork Face to Load CG | 24 in (600 mm) |
|---|---|
| Tire Type | C |
| Fork Carriage ISO 2328, Class / Type | II / A |
| Forks Length x Width x Thickness | 41x4x1.4 in (1,050x100x35 mm) |
| Headlength Length to Fork Face | 85.7 in (2,178 mm) |
| Overall Width | 37.0 in (940 mm) |
| Load Distance Center of Drive Axle to Fork Face | 15.7 in (399 mm) |
| Aisle Width Right Angle Stack (L = 48″ x W = 40″) | 130.5 in (3,314 mm) |
| Tire Size – Front OD x Width x Rim Dia. | 18 x 6 x 12.12 in |
| Tire Size – Rear OD x Width x Rim Dia. | 14 x 5 x 10 in |
| Wheelbase Distance | 50.6 in (1,285 mm) |
| Tread / Track Width Front / Rear | 31 / 32 in (786 / 814 mm) |
| Ground Clearance Loaded at the lowest point | 3.0 in (75 mm) |
| Ground Clearance Loaded at center of wheelbase | 4.1 in (105 mm) |
Weight 3 specs
| Vehicle Weight | 6,903 lb (3,131 kg) |
|---|---|
| Axle Load Loaded, Front / Rear | 9,292 / 1,545 lb (4,215 / 701 kg) |
| Axle Load Unloaded, Front / Rear | 2,266 / 4,634 lb (1,028 / 2,102 kg) |
Power / Engine 6 specs
| Power Type | LPG |
|---|---|
| Battery Voltage / Ampere | 12 / 45 V/AH |
| Engine Manufacturer / Model | GCT / GK25L |
| Rated Power (SAE Gross) | 50.6 HP/rpm at 2,450 (37.7 kW/rpm at 2,450) |
| Cylinders / Displacements | 4 / 2.5 L Liters |
| Transmission Type | Powershift |
Hydraulics / Fluids 2 specs
| Hydraulic Pressure System | 3,125 psi (215 bar) |
|---|---|
| Hydraulic Pressure Attachment | 2,040 psi (140 bar) |
