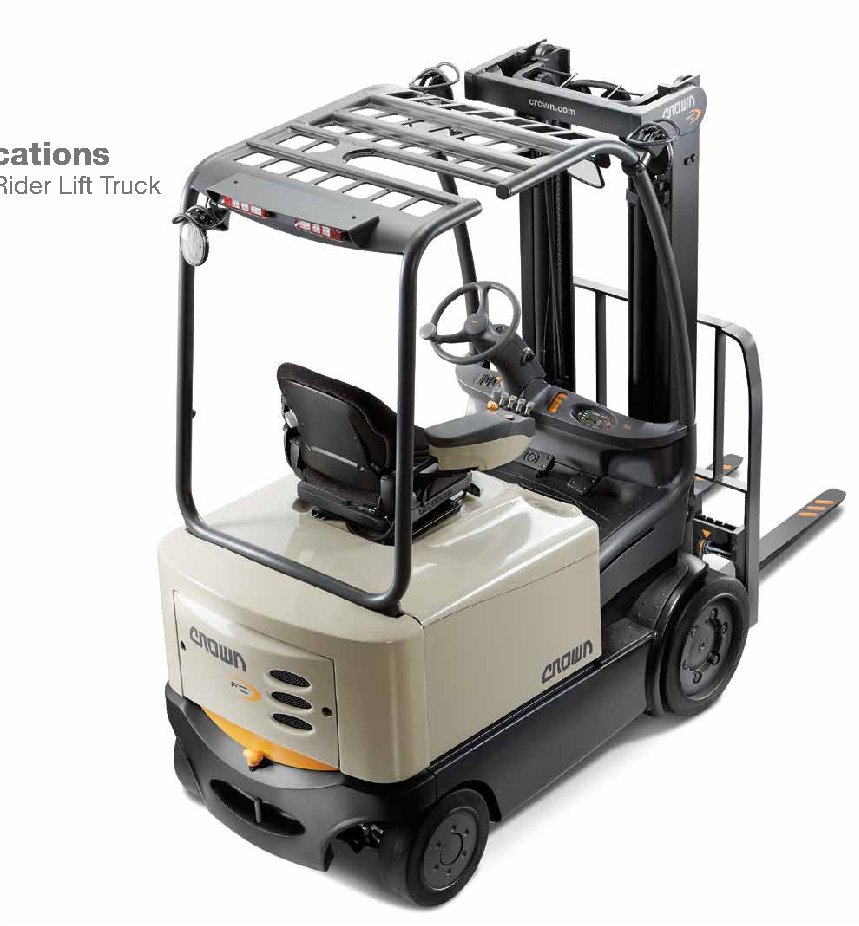

Crown FC5215-50 Specs
Quick-reference specifications for the Crown FC5215-50 forklift, taken from the manufacturer’s spec sheet.
- Capacity – 36V 5hr Rating @ 30°C
- 1180 AH
Performance 10 specs
| Load Capacity | 5000 lb (2265 kg) |
|---|---|
| Load Center – Fork Face to Load CG | 24 in (600 mm) |
| Tilt-F°/B° | 5 / 5 degree |
| Turning Radius | 69.3 in (1760 mm) |
| Speed Travel – Empty / Loaded 48V | 12.3/11.0 mph (19.7/17.7 km/h) |
| Speed Travel – Empty / Loaded 36V | 11.0/10.0 mph (17.7/16.1 km/h) |
| Speed Lower – Empty / Loaded (Manual Hyd) | 90/90 fpm (0.46/0.46 m/s) |
| Speed Lower – Empty / Loaded (EPV Hyd) | 100/100 fpm (0.51/0.51 m/s) |
| Brakes – Service | Foot – Motor |
| Brakes – Parking | Auto – Electric |
Dimensions 17 specs
| Tire Type | Cushion |
|---|---|
| Free Lift Height | 32.2 in (815 mm) |
| Forks-StandardLxWxT | 36x4x1.8 in (915x102x46 mm) |
| Interlocked Fork Height | 66 in (1675 mm) |
| Headlength – Length to Fork Face | 81.4 in (2070 mm) |
| Width Overall – Standard Tread | 43.9 in (1115 mm) |
| Width Overall – Wide Tread | 47.5 in (1210 mm) |
| Mast Extended | 236 in (5995 mm) |
| Load Distance – Center of Wheel to Fork Face | 15.8 in (400 mm) |
| Tires – Size Front | 21x7x15 in (533x178x381 mm) |
| Tires – Size Rear | 16x6x10.5 in (406x152x267 mm) |
| Wheelbase | 49.7 in (1260 mm) |
| Tread/Track Width – Front Standard / Rear | 36.9/36 in (937/914 mm) |
| Tread/Track Width – Front Optional / Rear | 40.5/36 in (1029/914 mm) |
| Ground Clearance, Loaded Lowest Point | 3 in (76 mm) |
| Ground Clearance – Center of Wheelbase | 4.8 in (122 mm) |
| Cable Lead Length/Connector Pos. | 18/A in (455/A mm) |
Weight 1 spec
| Weight, Less Battery | 8090 lb (3670 kg) |
|---|
Power / Engine 10 specs
| Power – Electric | 36-Volt / 48-Volt |
|---|---|
| Battery Compartment Nominal | 27 in (686 mm) |
| Axle Load with Max Battery, Loaded – Front | 13657 lb (6189 kg) |
| Axle Load with Max Battery, Loaded – Rear | 2633 lb (1196 kg) |
| Battery – Type | Lead Acid |
| Battery – Weight – Min | 2630 lb (1195 kg) |
| Battery – Weight – Max | 3200 lb (1450 kg) |
| Battery Floor Height With Rollers / w/o Rollers | 17.4/17.1 in (442/434 mm) |
| Motors – Dual Tractor Motors, dia | 8.9 in (225 mm) |
| Motors – Lift Motor, dia | 7.2 in (183 mm) |
Hydraulics / Fluids 4 specs
| Capacity – 36V 5hr Rating @ 30°C | 1180 AH |
|---|---|
| Capacity – 36V 6hr Rating @ 25°C | 1210 AH |
| Capacity – 48V 6hr Rating @ 25°C | 880 AH |
| Operating Pressure For Attachments | Up to 3000 psi (Up to 207 bar) |
