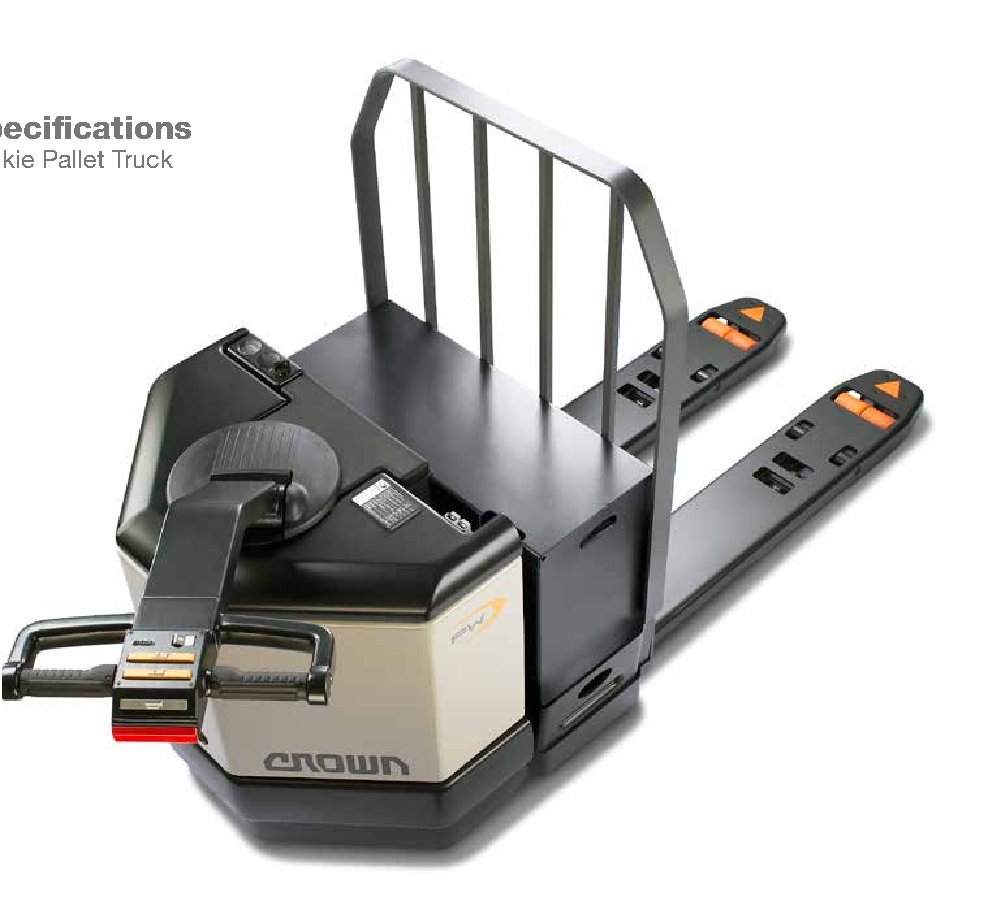

Crown PW3520-60 Specs
Quick-reference specifications for the Crown PW3520-60 forklift, from the manufacturer’s spec sheet and published specifications.
- Maximum Lift Height
- 9.25 in235 mm
- Gradeability (Loaded)
- 6%
Performance 7 specs
| Load Capacity | 6,000 lb (2,722 kg) |
|---|---|
| Travel Speed (Loaded) | 2.8 mph (4.5 km/h) |
| Travel Speed (Unladen) | 4.0 mph (5.5 km/h) |
| Gradeability (Loaded) | 6% |
| Gradeability (Unladen) | 10% |
| Maximum Lift Height | 9.25 in (235 mm) |
| Turning Radius (Forks Raised, 36in forks) | 53.35 in (1,355 mm) |
Dimensions 8 specs
| Overall Length (36in forks, Option 1) | 64.94 in (1,650 mm) |
|---|---|
| Overall Length (42in forks, Option 1) | 70.94 in (1,800 mm) |
| Overall Length (48in forks, Option 1) | 76.94 in (1,955 mm) |
| Wheelbase – Forks Raised (36in forks, Option 1) | 43.12 in (1,095 mm) |
| Actual Fork Length (36in nominal) | 35.75 in (910 mm) |
| Actual Fork Length (42in nominal) | 41.75 in (1,060 mm) |
| Actual Fork Length (48in nominal) | 47.75 in (1,210 mm) |
| Lift (Mast Collapsed) | 6 in (150 mm) |
Weight 1 spec
| Total Weight (Without Battery) | 1,310 lb (594 kg) |
|---|
Power / Engine 1 spec
| Battery Voltage | 24 V DC |
|---|
