Forklift · Crown

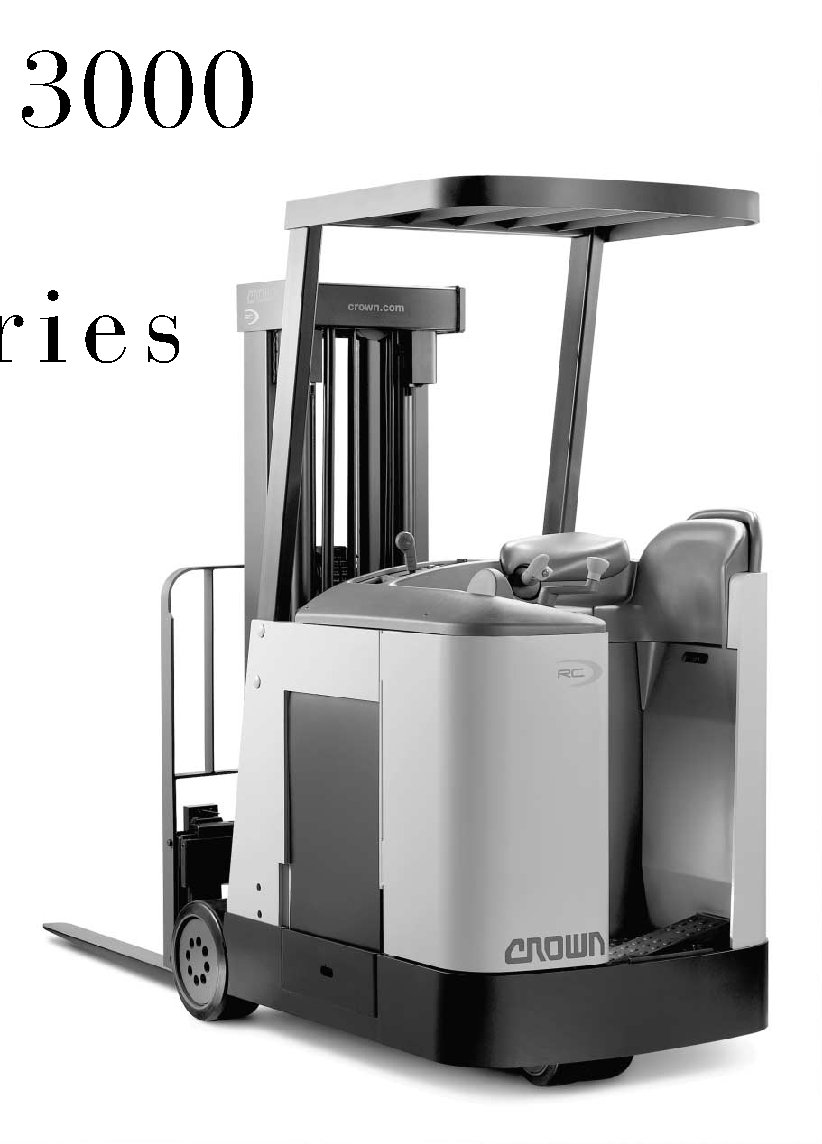

Crown RC3020-30 Specs
Quick-reference specifications for the Crown RC3020-30 forklift, taken from the manufacturer’s spec sheet.
Performance 9 specs
| Load Capacity | 3000 lb |
|---|---|
| Speed Travel Empty/Loaded | 6.4/6.2 mph |
| Speed Lift Empty/Loaded – TL | 90/51 fpm |
| Speed Lift Empty/Loaded – TF | 73/47 fpm |
| Speed Lift Empty/Loaded – TT | 75/45 fpm |
| Speed Lower Empty/Loaded | 60-80/40-60 fpm |
| Turning Radius (13.68 x 38.56 x 31) | 53.0 in |
| Turning Radius (15.88 x 38.56 x 31) | 55.1 in |
| Turning Radius (18.38 x 38.56 x 31) | 57.5 in |
Dimensions 15 specs
| Load Center Fork Face to Load CG | 24 in |
|---|---|
| ForksStandardLxWxT | 36 x 4 x 1.5 in |
| Guard Height | 90.5 in |
| Width at Drive Tire | 40 in |
| Tires Drive | 13.5 x 6 x 8 in |
| Tires Steer | 9 x 5 x 5 in |
| Wheelbase Comp’t 13.68 x 38.56 x 31 | 42.6 in |
| Wheelbase Comp’t 15.88 x 38.56 x 31 | 44.8 in |
| Wheelbase Comp’t 18.38 x 38.56 x 31 | 47.3 in |
| Headlength (13.68 x 38.56 x 31) | 62.6 in |
| Headlength (15.88 x 38.56 x 31) | 64.8 in |
| Headlength (18.38 x 38.56 x 31) | 67.3 in |
| Right Angle Stack (13.68 x 38.56 x 31) | 62.6 in |
| Right Angle Stack (15.88 x 38.56 x 31) | 64.8 in |
| Right Angle Stack (18.38 x 38.56 x 31) | 67.3 in |
Power / Engine 2 specs
| Power Electric | 36 volts |
|---|---|
| Power Unit Width | 39.8 in |
