Forklift · Crown

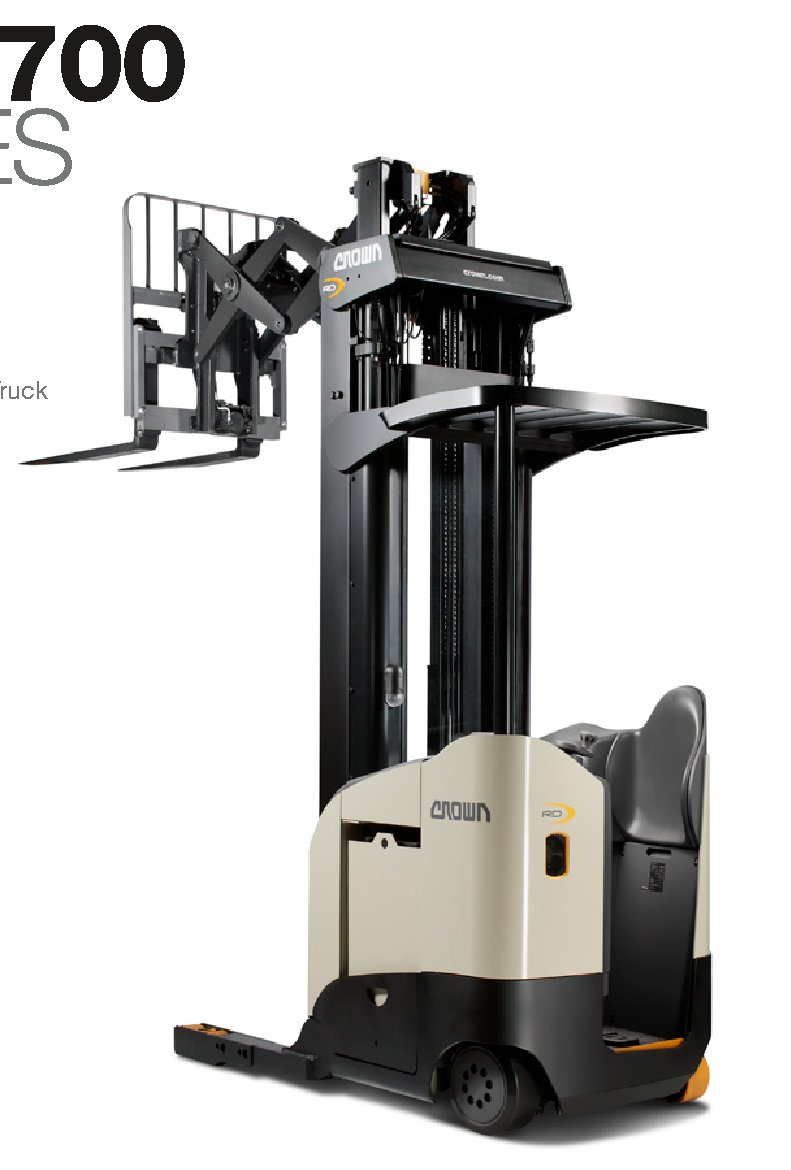

Crown RD5725-32 Specs
Quick-reference specifications for the Crown RD5725-32 forklift, from the manufacturer’s spec sheet and published specifications.
- Maximum Lift Height
- 198-246 in
Performance 8 specs
| Load Capacity | 3,200 lb (1,450 kg) |
|---|---|
| Load Center | 24 in (600 mm) |
| Travel Speed (Forward, Full Load) | 7.2 mph |
| Travel Speed (Forward, No Load) | 8 mph |
| Travel Speed (Reverse, Full Load) | 5.7 mph |
| Travel Speed (Reverse, No Load) | 6.8 mph |
| Lifting Speed (No Load) | 152 fpm |
| Carriage Tilt (Forward/Backward) | 3/4 degrees |
Dimensions 12 specs
| Overall Width (Minimum Straddle) | 42 in (1,065 mm) |
|---|---|
| Length to Fork Face (Compartment C) | 58.48 in (1,485 mm) |
| Length to Fork Face (Compartment D) | 60.23 in (1,530 mm) |
| Length to Fork Face (Compartment E) | 62.85 in (1,595 mm) |
| ForkSize(TxWxL) | 1.5 x 4 x 36 in |
| Free-Lift Height | 53-75 in |
| Maximum Lift Height | 198-246 in |
| Mast Lowered Height | 89-111 in |
| Overhead Guard Height | 89-95 in |
| Wheelbase (Compartment C) | 61.32 in (1,565 mm) |
| Wheelbase (Compartment D) | 63.07 in (1,600 mm) |
| Wheelbase (Compartment E) | 65.70 in (1,670 mm) |
Weight 3 specs
| Truck Weight without Battery (variable by lift height) | 6,371-6,685 lb (2,900-3,040 kg) |
|---|---|
| Battery Weight (Compartment C minimum) | 2,000 lb |
| Battery Weight (Compartment E minimum) | 2,600 lb |
Power / Engine 2 specs
| Voltage | 36 Volts |
|---|---|
| Drive Motor Power | 7.5 hp |
