Forklift · Crown

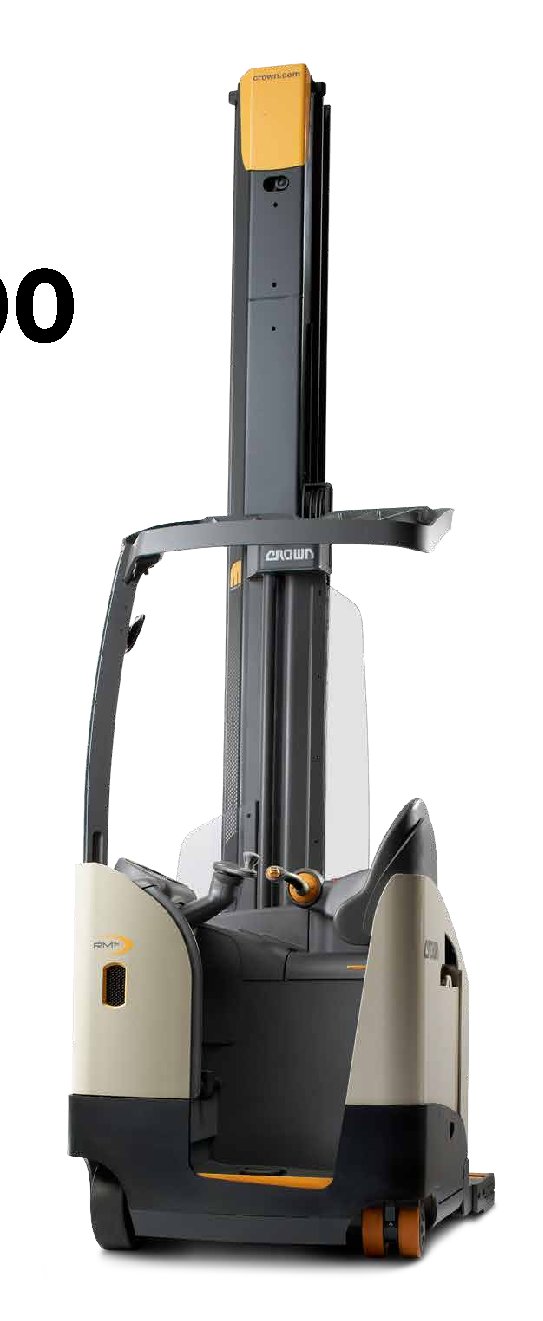

Crown RM6095S Specs
Quick-reference specifications for the Crown RM6095S forklift, taken from the manufacturer’s spec sheet.
Performance 11 specs
| Load Capacity – Max | 4500 lb (2000 kg) |
|---|---|
| Load Center – Fork Face to Load CG | 24 in (600 mm) |
| Operator Type – Reach | Sit / Stand |
| Mast Type – High Visibility | MM |
| Carriage – Tilt F°/B° | 3/4 degree |
| Speed Travel – Forks First (E/L) | 6.9 / 6.2 mph (11.1 / 10.0 km/h) |
| Speed Lift – AC – Empty | 160 fpm (813 mm/s) |
| Speed Lower – Empty/Loaded | 110 / 110 fpm (559 / 559 mm/s) |
| Suspension – Drive | Articulated |
| Brakes – Caster | Electronically Applied |
| Brakes – Parking | Elec Release / Mech Applied |
Dimensions 5 specs
| Tire Type – Load/Caster/Drive | Poly / Poly / Poly |
|---|---|
| Forks-StandardLxWxT | 36 x 4 x 1.75 in (914 x 102 x 45 mm) |
| Forks – Optional Lengths | 30, 39, 42, 45, 48 in (762, 990, 1065, 1145, 1220 mm) |
| Headlength – Compartment “E” | 62.40 in (1585 mm) |
| Headlength – Compartment “F” | 65.90 in (1673 mm) |
Power / Engine 2 specs
| Power | 36 Volts |
|---|---|
| Speed Travel – Power Unit First (E/L) | 8.3 / 7.5 mph (13.4 / 12.1 km/h) |
