Forklift · Crown

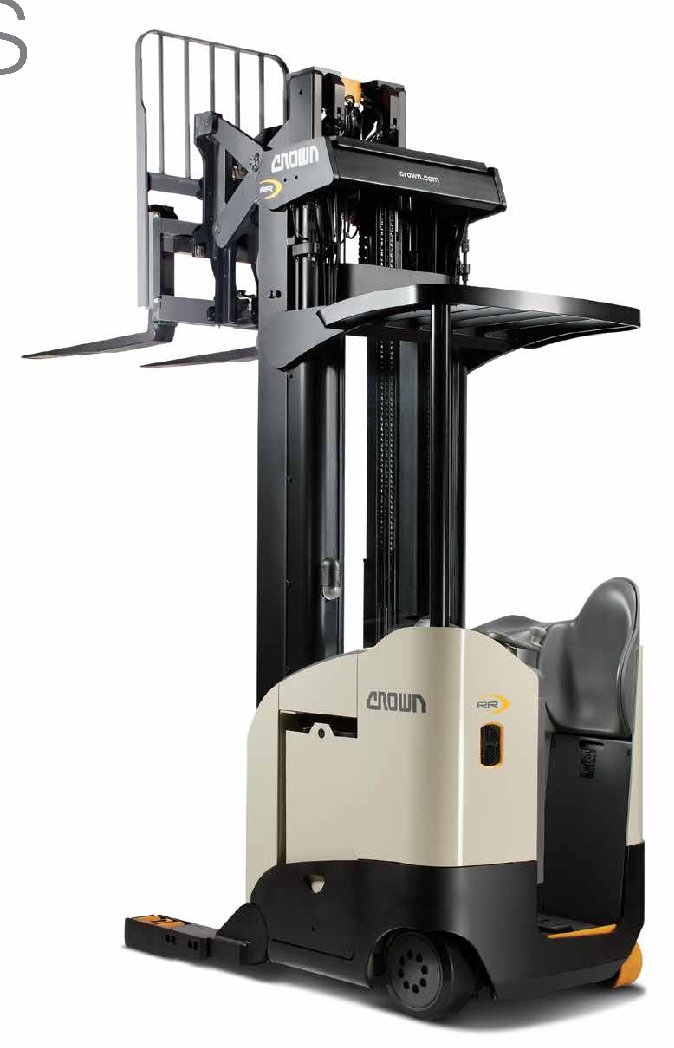

Crown RR5725-35 Specs
Quick-reference specifications for the Crown RR5725-35 forklift, taken from the manufacturer’s spec sheet.
Performance 7 specs
| Load Capacity Max | 3500 lb (1585 kg) |
|---|---|
| Load Center – Fork Face to Load CG | 24 in (600 mm) |
| Operator Type Reach | Stand |
| Carriage – Tilt F°/B° | 3 / 4 degree |
| Speed Travel Forks First (E/L) | 6.8 / 5.7 mph (10.9 / 9.2 kph) |
| Speed Lift – AC Empty | 158 fpm (800 mm/s) |
| Speed Lower Empty/Loaded | 110 / 110 fpm (555 / 555 mm/s) |
Dimensions 7 specs
| Tire Type – Load/Caster/Drive | Poly / Poly / Poly |
|---|---|
| Mast Type – High Visibility | TT |
| Forks-StandardLxWxT | 36 x 4 x 1.75 in (915 x 102 x 45 mm) |
| Forks – Optional Lengths | 30, 39, 42, 45, 48 in (760, 990, 1065, 1145, 1220 mm) |
| Headlength – Comp’t “B” | 51.25 in (1300 mm) |
| Headlength – Comp’t “C” | 53.25 in (1355 mm) |
| Connector Loc/Length (J) | A / 9 in (mm) |
Weight 2 specs
| Suspension – Drive | Articulated |
|---|---|
| Brakes – Parking | Elec Release / Mech Applied |
Power / Engine 3 specs
| Power | 36 Volts |
|---|---|
| Speed Travel Power Unit First (E/L) | 8.0 / 7.2 mph (12.9 / 11.6 kph) |
| Min Weight/Max Amp Comp’t “C” | 1880 lb/amp / 930 amp (855 kg/amp / 930 amp) |
