Forklift · Crown

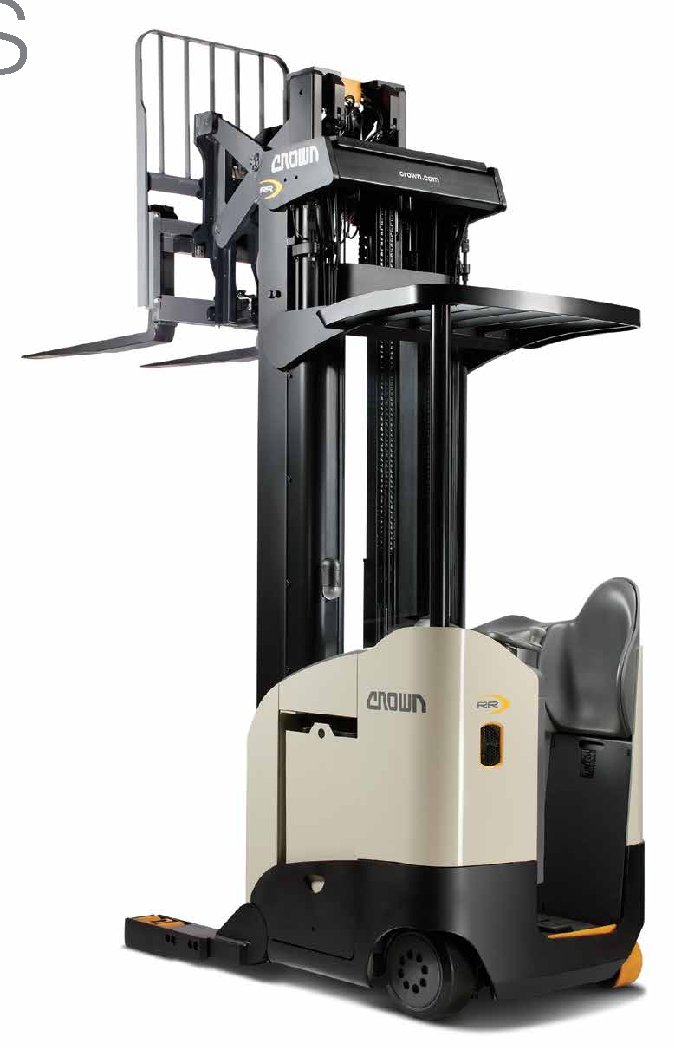

Crown RR5725-45 Specs
Quick-reference specifications for the Crown RR5725-45 forklift, taken from the manufacturer’s spec sheet.
Performance 7 specs
| Load Capacity Max | 4500 lb (2000 kg) |
|---|---|
| Load Center Fork Face to Load CG | 24 in (600 mm) |
| Operator Type Reach | Stand |
| Carriage Tilt F°/B° | 3 / 4 degree |
| Speed Travel Forks First (E/L) | 6.8 / 5.7 mph (10.9 / 9.2 kph) |
| Speed Lift – AC Empty | 153 fpm (775 mm/s) |
| Speed Lower Empty/Loaded | 110 / 110 fpm (555 / 555 mm/s) |
Dimensions 14 specs
| Tire Type Load/Caster/Drive | Poly / Poly / Poly |
|---|---|
| Mast Type High Visibility | TT |
| ForksStandardLxWxT | 36 x 4 x 1.75 in (915 x 102 x 45 mm) |
| Forks Optional Lengths | 30, 39, 42, 45, 48 in (760, 990, 1065, 1145, 1220 mm) |
| Headlength Comp’t “C” | 53.67 in (1365 mm) |
| Headlength Comp’t “D” | 55.42 in (1410 mm) |
| Headlength Comp’t “E” | 58.04 in (1475 mm) |
| Wheelbase (Standard Wheel) Comp’t “C” | 58.32 in (1480 mm) |
| Wheelbase (Standard Wheel) Comp’t “D” | 60.07 in (1525 mm) |
| Wheelbase (Standard Wheel) Comp’t “E” | 62.70 in (1595 mm) |
| Suspension Drive | Articulated |
| Brakes Drive | Elec Release / Mech Applied |
| Brakes Parking | Elec Release / Mech Applied |
| Connector Loc/Length (J) | A / 9 in (mm) |
Power / Engine 5 specs
| Power | 36 Volts |
|---|---|
| Speed Travel Power Unit First (E/L) | 8.0 / 7.2 mph (12.9 / 11.6 kph) |
| Min Weight/Max Amp Comp’t “C” | 2000 lb/amp / 930 amp (910 kg/amp / 930 amp) |
| Min Weight/Max Amp Comp’t “D” | 2280 lb/amp / 1085 amp (1035 kg/amp / 1085 amp) |
| Min Weight/Max Amp Comp’t “E” | 2600 lb/amp / 1240 amp (1180 kg/amp / 1240 amp) |
