Forklift · Crown

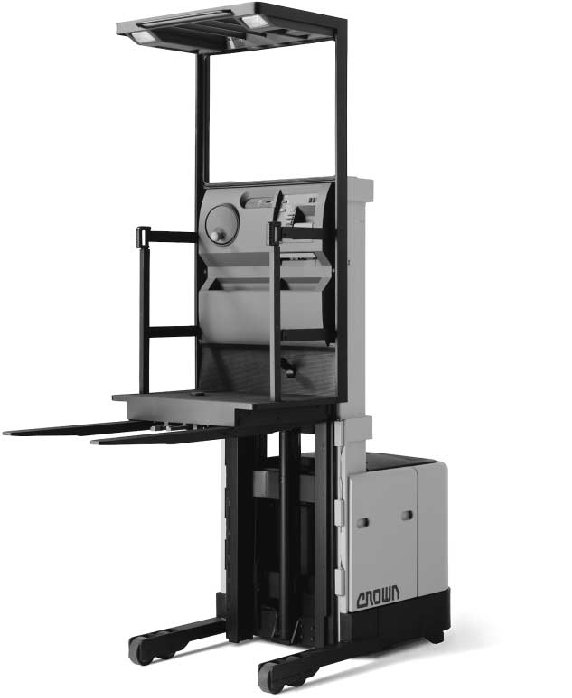

Crown SP3020-30 Specs
Quick-reference specifications for the Crown SP3020-30 forklift, taken from the manufacturer’s spec sheet.
Performance 7 specs
| Wheels (x = driven) | 4/1x |
|---|---|
| Turning Radius | 69/68 in |
| Speed Lift TL | 45/28 fpm |
| Speed Lift TT | 40/26 fpm |
| Speed Lower TL | 40/38 fpm |
| Speed Lower TT | 40/38 fpm |
| Load Capacity SP 3020 Lift Height 172 TL | 3000 lb |
Dimensions 10 specs
| Load Center | 24 in |
|---|---|
| Tire Type | Poly/Poly |
| Head Length | 74.6/75.6 in |
| Forks | 36 x 4 x 2 in |
| Wheelbase | 52/51 in |
| Free Lift | 3 in |
| Collapsed Height | 89.5 in |
| Extended Height | 283 in |
| Straddle Width | 42 in |
| Operator Compartment Width | 42 in |
Power / Engine 5 specs
| Power | 24 Volts |
|---|---|
| Battery Type | Lead Acid |
| Battery Max Battery Size | 14.25 x 36.25 x 31 high |
| Traction Motor 80 Min Rating | 3.5 hp |
| Truck Weight without Battery | 5753 lb |
