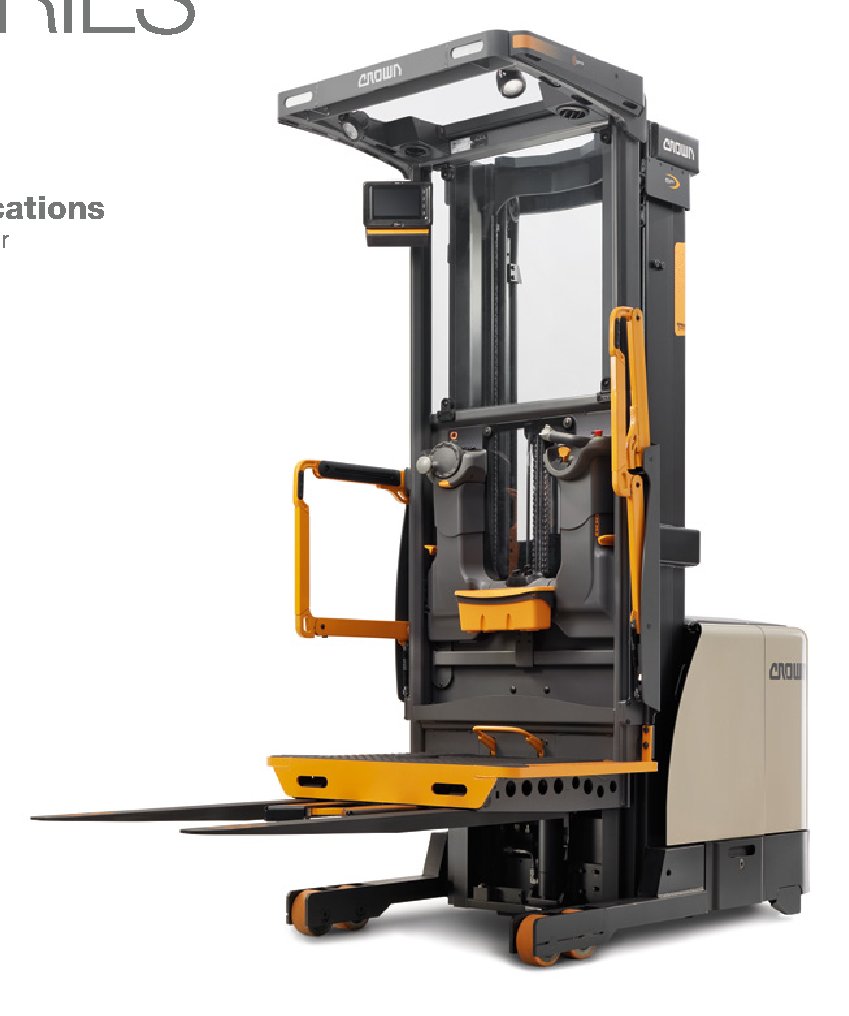

Crown SP1510 Specs
Quick-reference specifications for the Crown SP1510 forklift, from the manufacturer’s spec sheet and published specifications.
- Rated Capacity
- 3,000 lb1,360 kg
Performance 6 specs
| Number Front/Back (x=Driven) | 4/1x |
|---|---|
| Raised | h12 |
| Lowered | h13 |
| Rated Capacity | 3,000 lb (1,360 kg) |
| Load Center | 24 in (600 mm) |
| Power Source | Electric 24/36/48 Volt |
Dimensions 14 specs
| Fork Height Lowered | 3 in (75.5 mm) |
|---|---|
| Stand Height Lowered | 8.1 in (206 mm) |
| Collapsed Height (TL Mast, min) | 131 in (3,330 mm) |
| Collapsed Height (TL Mast, max) | 107 in (2,720 mm) |
| Collapsed Height (TT Mast, min) | 91 in (2,315 mm) |
| Collapsed Height (TT Mast, max) | 95 in (2,415 mm) |
| Free Lift (TL Mast, min) | 37.5 in (950 mm) |
| Free Lift (TL Mast, max) | 45 in (1,145 mm) |
| Free Lift (TT Mast, min) | 34 in (830 mm) |
| Free Lift (TT Mast, max) | 38 in (965 mm) |
| Lift Height (TL Mast, min) | 245 in (6,220 mm) |
| Lift Height (TL Mast, max) | 272 in (6,905 mm) |
| Lift Height (TT Mast, min) | 227 in (5,765 mm) |
| Lift Height (TT Mast, max) | 242 in (6,145 mm) |
