Forklift · Crown

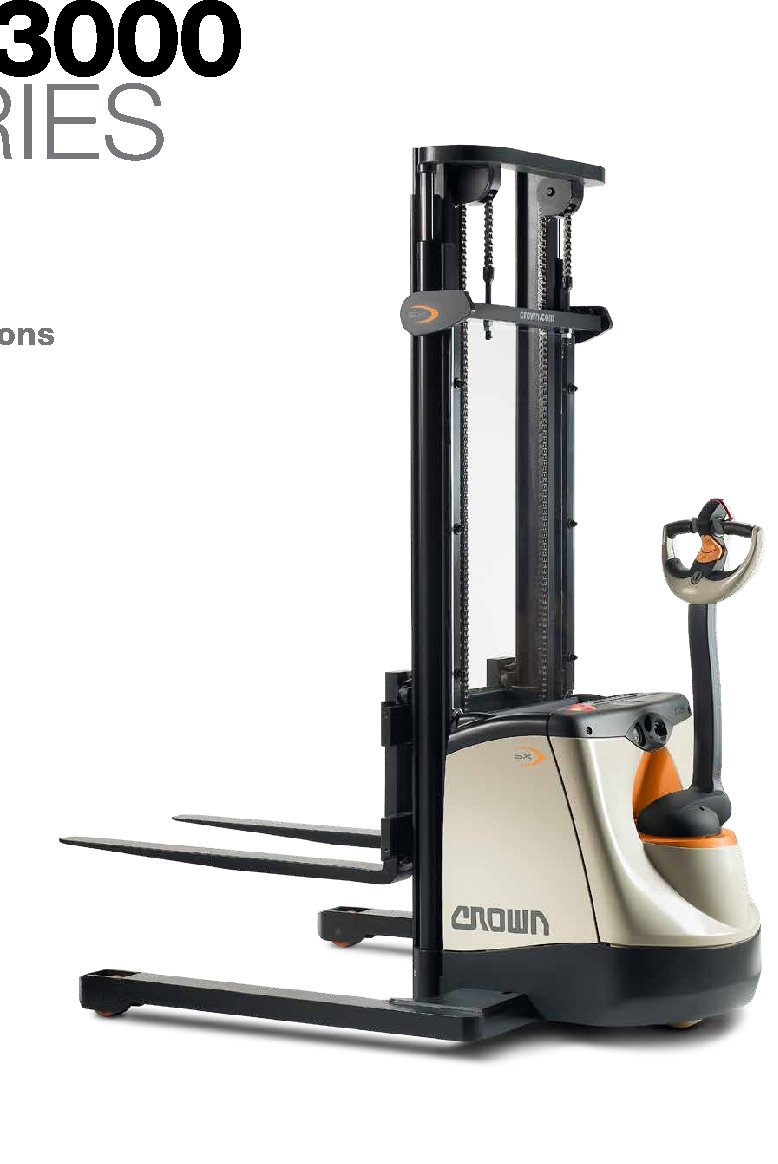

Crown SX3000-30 Specs
Quick-reference specifications for the Crown SX3000-30 forklift, from the manufacturer’s spec sheet and published specifications.
- Gradeability
- 15% with load
Performance 8 specs
| Load Capacity (Max) | 3000 lb (1361 kg) |
|---|---|
| Load Center | 24 in (600 mm) |
| Travel Speed (with load) | 3.4 mph (5.5 km/h) |
| Travel Speed (without load) | 3.7 mph (6 km/h) |
| Lifting Speed (with load) | 0.16 m/s |
| Lowering Speed (with load) | 0.25 m/s |
| Turning Radius | 61.14 in (1553 mm) |
| Gradeability | 15% with load |
Dimensions 11 specs
| Wheelbase | 53.6 in (1362 mm) |
|---|---|
| Lowered Fork Height | 2 in (50 mm) |
| Fork Lengths Available | 36/42/48 in (914/1067/1219 mm) |
| Fork Dimensions (Thickness x Width) | 1.5 x 4 in (38 x 102 mm) |
| Width Across Forks (Adjustable Min/Max) | 10-30.93 in (253.6-785.6 mm) |
| Overall Width (Front) | 28.03 in (712 mm) |
| Headlength (TL-128 mast) | 34.02 in (869 mm) |
| Headlength (TT-168 mast) | 34.72 in (887 mm) |
| Power Unit Height | 32.28 in (820 mm) |
| Collapsed Height | 73 in (1858 mm) |
| Tiller Arm Height (Min/Max) | 31.1/47.5 in (790/1206 mm) |
Weight 6 specs
| Truck Weight Less Battery (TL-128) | 2143 lb (972 kg) |
|---|---|
| Truck Weight Less Battery (TT-154) | 2319 lb (1052 kg) |
| Truck Weight Less Battery (TT-168) | 2319 lb (1052 kg) |
| Total Weight (TL-3236 with auxiliary) | 2424 lb (1099 kg) |
| Battery Weight (4x 6v MF) | 267 lb (121 kg) |
| Battery Weight (300 amp hour Industrial) | 360-710 lb (163-322 kg) |
Power / Engine 3 specs
| Battery Voltage | 24 V |
|---|---|
| Drive Motor | 3 kW |
| Hydraulic Motor Power | 4 kW |
Hydraulics / Fluids 1 spec
| Mast Type Options | TL-128 (3236 mm), TT-154 (3912 mm), TT-168 (4267 mm) |
|---|
