Forklift · Crown

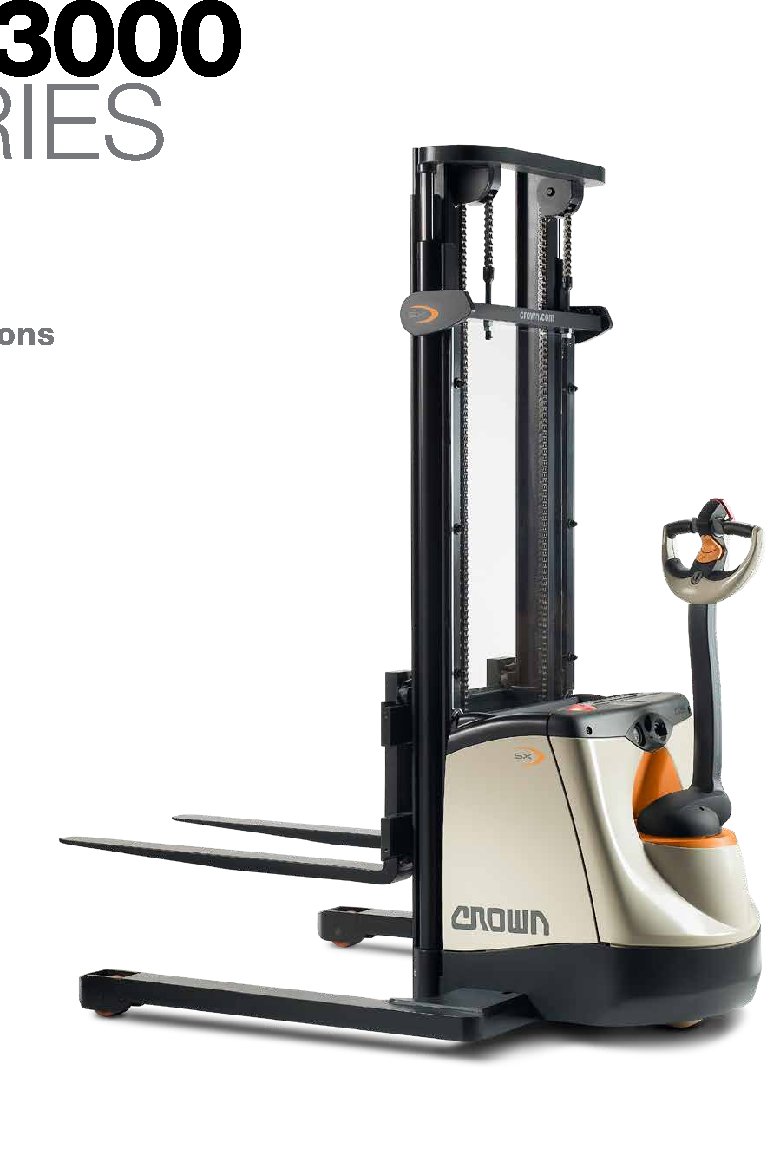

Crown SX3000-40 Specs
Quick-reference specifications for the Crown SX3000-40 forklift, from the manufacturer’s spec sheet and published specifications.
- Capacity 6 Hour Rating)
- 300 Industrial
Performance 4 specs
| Capacity 6 Hour Rating) | 300 Industrial |
|---|---|
| Load Capacity | 4,000 lb (1,814 kg) |
| Load Center | 24 in (600 mm) |
| Wheelbase | 54.45 in (1,383 mm) |
Dimensions 6 specs
| Lift Height | 127.4 in (3,236 mm) |
|---|---|
| Fork Lengths Available | 36 in / 42 in / 48 in (914 mm / 1,067 mm / 1,219 mm) |
| Fork Dimensions | 1.5 in × 4 in (38 mm × 102 mm) |
| Width Across Forks (adjustable) | 10–30.93 in (253.6–785.6 mm) |
| Tiller Arm Height (Min/Max) | 31.1–47.5 in (790–1,206 mm) |
| Lowered Fork Height | 2 in (50 mm) |
Power / Engine 3 specs
| Battery Voltage (Nominal | 4x 6v MF |
|---|---|
| Voltage | 24 volt |
| Mast Type | TL-129 |
