Forklift · Doosan

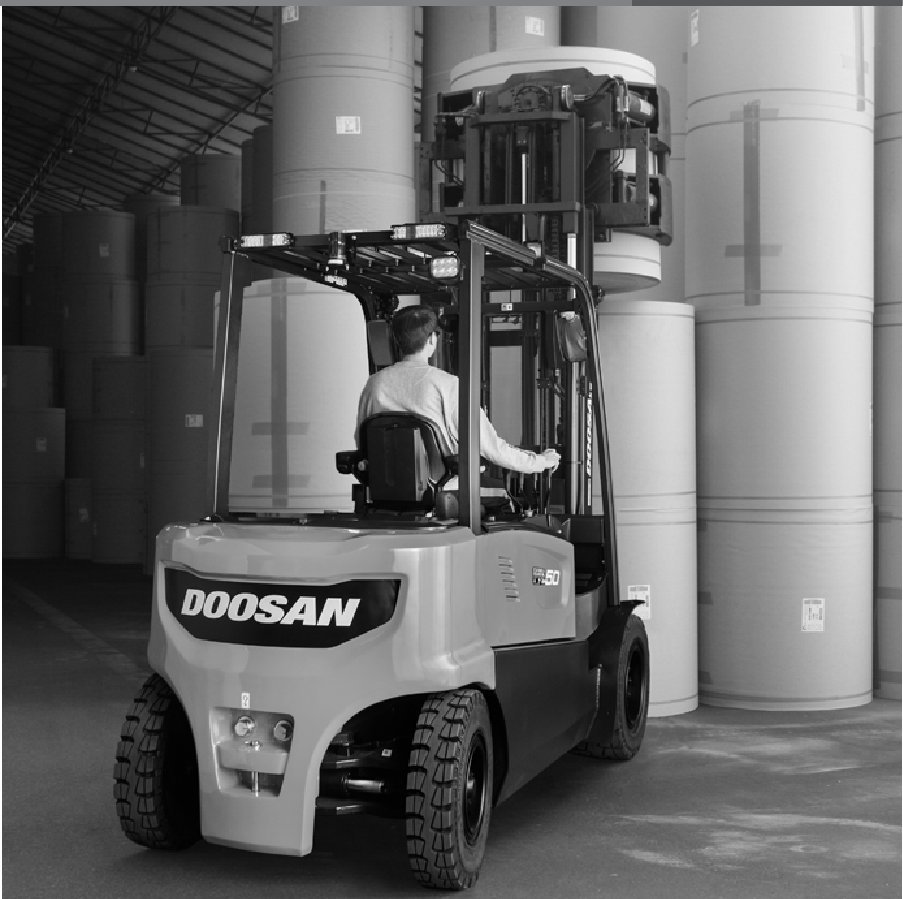

Doosan B50X-7 Specs
Quick-reference specifications for the Doosan B50X-7 forklift, taken from the manufacturer’s spec sheet.
- Maximum gradeability, loaded / unloaded, 5 minute rating
- 15 / 25 %
Performance 11 specs
| Load capacity/rated load | 5,000 kg |
|---|---|
| Tilt of mast/fork carriage forward (α)/backward(β) | 6 / 9 deg |
| Turning radius | 2,645 mm |
| Internal turning radius | 879 mm |
| Travel speed, loaded / unloaded | 15 / 16 km/h |
| Lift speed, loaded / unloaded | 0.31 / 0.47 m/s |
| Lowering speed, loaded / unloaded | 0.48 / 0.45 m/s |
| Maximum drawbar pull, loaded / unloaded, 5 minute rating | 18,620 / 18,620 N |
| Maximum gradeability, loaded / unloaded, 5 minute rating | 15 / 25 % |
| Service brake | FOOT / HYD |
| Parking brake | HAND / MECH |
Dimensions 26 specs
| Load centre distance | 500 mm |
|---|---|
| Load distance, centre of drive axle to fork | 572 mm |
| Wheelbase | 2,000 mm |
| Tire size, front | 28 x 12.5 – 15 |
| Tire size, rear | 7.00 – 12 |
| Tread width, front | 1,160 mm |
| Tread width, rear | 1,111 mm |
| Height, mast lowered | 2,340 mm |
| Free lift | 160 mm |
| Lift (with STD 2-stage mast) | 3,250 mm |
| Lift height | 3,300 mm |
| Height, mast extended | 4,205 mm |
| Height to top of overhead guard | 2,335 mm |
| Seat height/stand height | 1,303 mm |
| Towing coupling height | 415 mm |
| Overall length | 4,037 mm |
| Length to face of forks | 2,987 mm |
| Overall width with single tires | 1,470 mm |
| Overall width with double tires | 1,735 mm |
| Fork dimensions | 50 / 150 / 1,200 mm |
| Fork carriage ISO 2328. Class/type A, B | IV A |
| Fork carriage width | 1,330 mm |
| Fork Spacing (min/max) | 340 x 1,290 mm |
| Ground clearance, centre of wheelbase | 160 mm |
| Aisle width for pallets 1000 x 1200 crossways | 4,417 mm |
| Aisle width for pallets 800 x 1200 lengthways | 4,617 mm |
Weight 2 specs
| Axle loading, loaded front/rear | 11,450 / 1,312 kg |
|---|---|
| Axle loading, unloaded front/rear | 3,770 / 3,992 kg |
Power / Engine 6 specs
| Service weight (with min. weight of battery) | 7,763 kg |
|---|---|
| Drive motor rating S2 60 minute | 10 X 2 kW |
| Lift motor rating at S3 15% | 28 kW |
| Battery voltage/nominal capacity K5 | 80 / 720 V/Ah |
| Battery weight (min) | 2,160 kg |
| Battery dimensions L/W/H | 990 / 1,028 / 784 mm |
Hydraulics / Fluids 3 specs
| Type of drive control unit | Inverter AC |
|---|---|
| Operating pressure for attachments – System | 230 bar |
| Operating pressure for attachments – Attachment | 155 bar |
